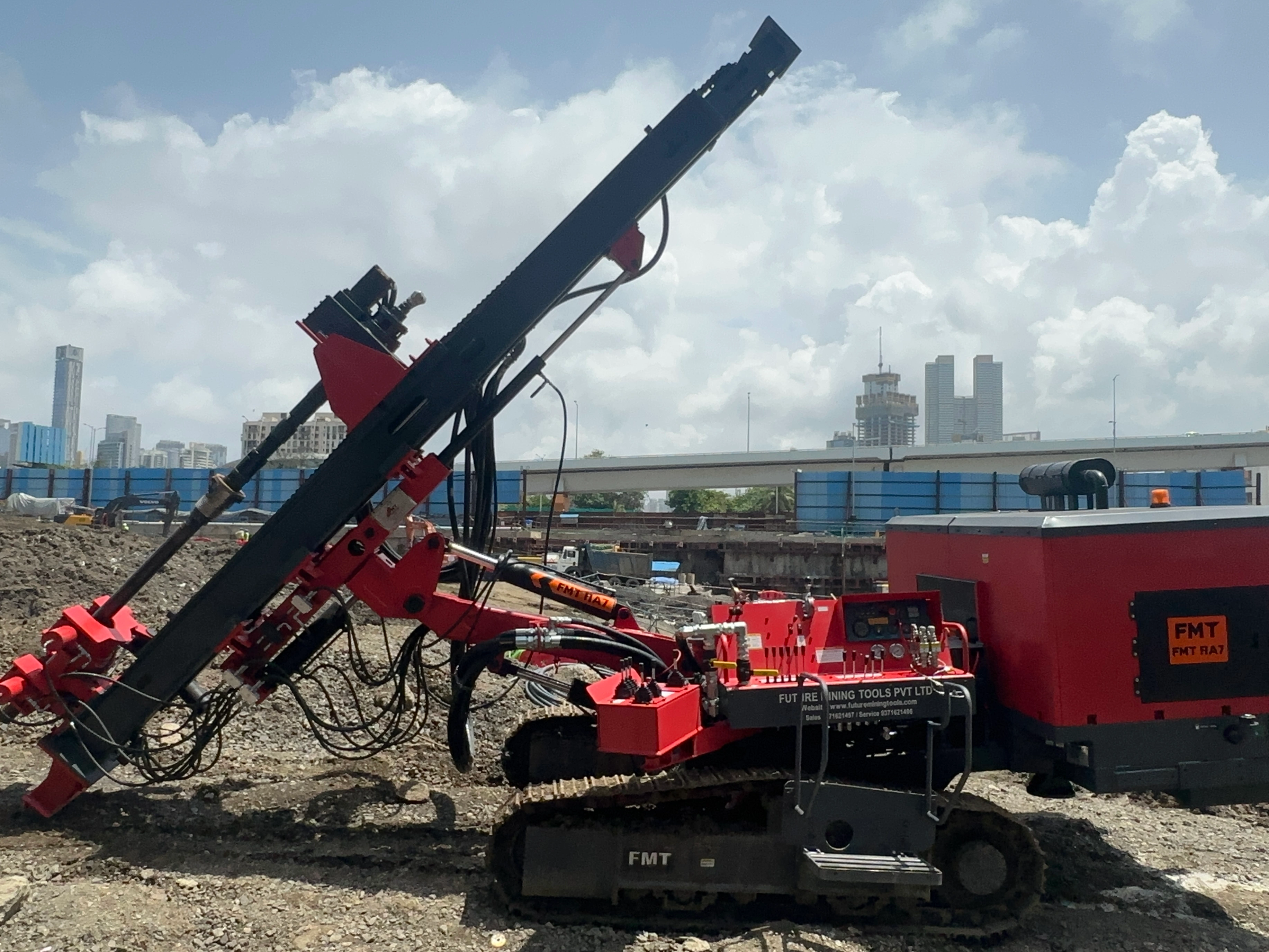

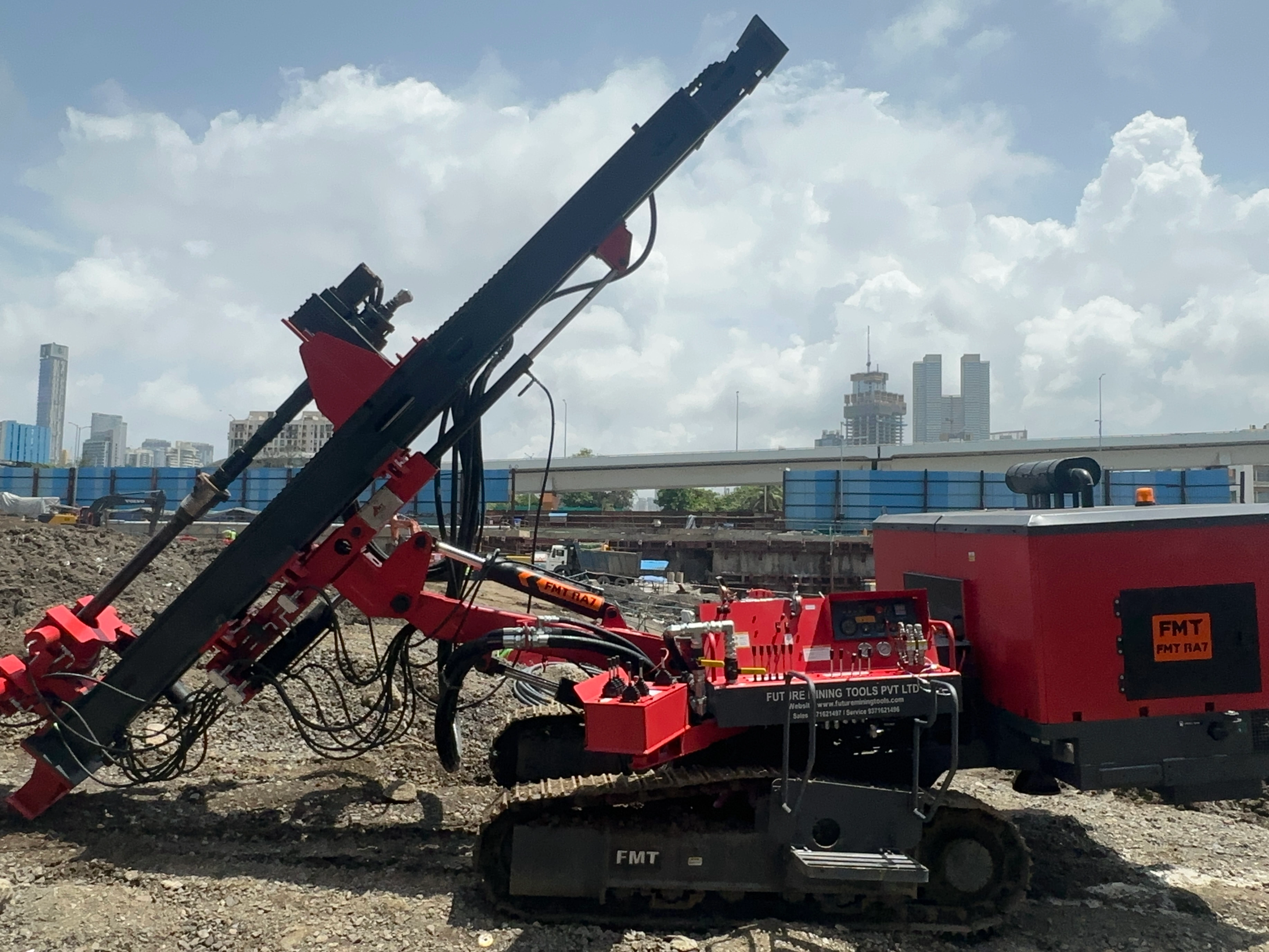

FMT RA 7 Rock Anchoring & Drilling Rig

Heavy-duty DTH rock anchoring and drilling rig.

The FMT RA 7 is a heavy-duty hydraulic drilling rig engineered for demanding rock anchoring, DTH drilling and deep-hole applications. It combines high hydraulic power, strong feed force and robust construction for challenging ground conditions.

Powered by a 170 HP diesel engine, the machine is capable of drilling holes from 115 mm up to 300 mm in diameter. Its heavy-duty gear box provides high torque and reliable drilling performance across a wide range of DTH applications.

The machine is equipped with hydraulic pumps designed to deliver the flow and pressure required for drilling, feeding, rotation and machine movement.

Yes! I am Interested View specifications

Request Callback

Get Best Quote

Product specification

Technical specification of the FMT RA 7.

Specification	Unit	FMT RA 7
Weight	kg	8000 (approx.)
Type	Type	DTH
Hole Diameter (Standard)	mm	115-300
Hole Depth (Anchoring / DTH)	m (ft)	30 m
Casing Drilling		Yes
Engine	HP / RPM	170 hp @ 2100 rpm
Suitable Compressor	CFM / PSI	575-1200 cfm @ 200-300 psi
Gradability	%	30%
Ground Clearance	mm	255
Speed	km/hr	0-3.5
Track Pad Shoe Size	mm	400
Feed Type	Type	Cylinder
Fuel Tank Capacity	litres	70
Rods	mm	76 / 89 / 115
Hammer	inch	4 to 7
Hydraulic System	Type	Piston Pumps
Feed, Rotation, Tramming	Type	Hydraulic
Rod Catcher	Type	4 cylinder
Track Oscillation	Type	Through two hydraulic cylinders

*Hole depth or drilling speed will depend upon site, compressor used, operator, hammer and engine.

Not sure this rig suits your job? Ask our team.

Key features of the FMT RA 7

Pure hydraulic crawler drill

Hole size 115-300 mm

Engine 170 HP

Capable of rock anchoring and casing drilling

Compact and reliable power pack, suitable for high pressure DHD

Wet type dust suppression and emergency stop button

Drill pipe length 3 m with 4 cylinder rod catcher

Heavy-duty rotation gear box for versatile work

Optional mud pump and winch motor

Applications

Made For The Places Where
Drilling Gets Tough.

The FMT RA 7 is built for rock anchoring, casing drilling and deep-hole DTH drilling.

01 • ROCK ANCHORING

Rock Anchoring

Built for demanding rock anchoring work in challenging ground conditions.

02 • CASING DRILLING

Casing Drilling

Capable of casing drilling along with DTH drilling.

03 • DEEP HOLES

Deep-Hole DTH Drilling

Drills holes from 115 mm up to 300 mm with a heavy-duty rotation gear box.

More hydraulic crawler drills

Other machines in the FMT hydraulic crawler drill range.

FAQs about the FMT RA 7

Can't find what you're looking for? Contact us here:

sales@FutureMiningTools.com

What is the FMT RA 7?

A heavy-duty hydraulic rock anchoring and DTH drilling rig for deep-hole and casing drilling applications.

What hole sizes can it drill?

115-300 mm. A hammer from 4 to 7 inch is used with 76, 89 or 115 mm rods.

How deep can it drill?

Up to 30 m for anchoring and DTH drilling. Depth depends on site, compressor, operator, hammer and engine.

Can it do casing drilling?

Yes. The FMT RA 7 is capable of both rock anchoring and casing drilling.

What engine and compressor does it need?

A 170 hp engine at 2100 rpm. A suitable compressor is 575-1200 cfm at 200-300 psi.

What is the machine weight?

Approximately 8,000 kg.

Are mud pump and winch available?

Yes, a mud pump and a winch motor are available as options.
