FMT Quick Coupler

  • Available from 1.5 tons to 42 tons of base machine.
  • Attach and detach the attachment within 20 seconds.
  • Fits all kinds of attachments such as Hydraulic Rock Breakers, Shears, Clamshells, etc.
Description / Model Unit FMT20 FMT30 FMT60 FMT80 FMT100 FMT140
Installation Range(W1) mm 100-172 155-200 251-280 305-340 375-472 386-439
Pin Diameter(ø) mm 25-45 45-50 50-70 70-80 80-120 90-120
Base Machine Weight ton 1.5-3 3.5-5.5 41426 15-22 25-32 33-42

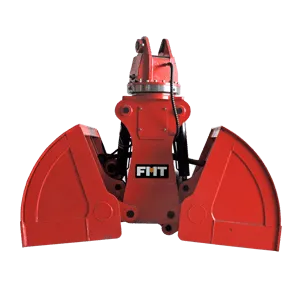

FMT Clamshell

  • High clamping forces with oversized piston - Allows secure gripping of the load.
  • Bronze bushed throughout - Maximizes its life.
  • FMT Clamshells are made withhighest quality steel available - SR-400.
  • Available in wide range of sizes and capacities, making them amenable to many applications.
Bucket type SIZE FMTCS FMTCS FMTCS
80 100 130
Bucket capacity m3 m3 0.8 1 1.2
Max. height mm B 1981 2051 2960
Opend max. height mm C 1492 1575 2650
Closed width mm A 1673 1902 2030
Weight kg Kg 100 1497 1960

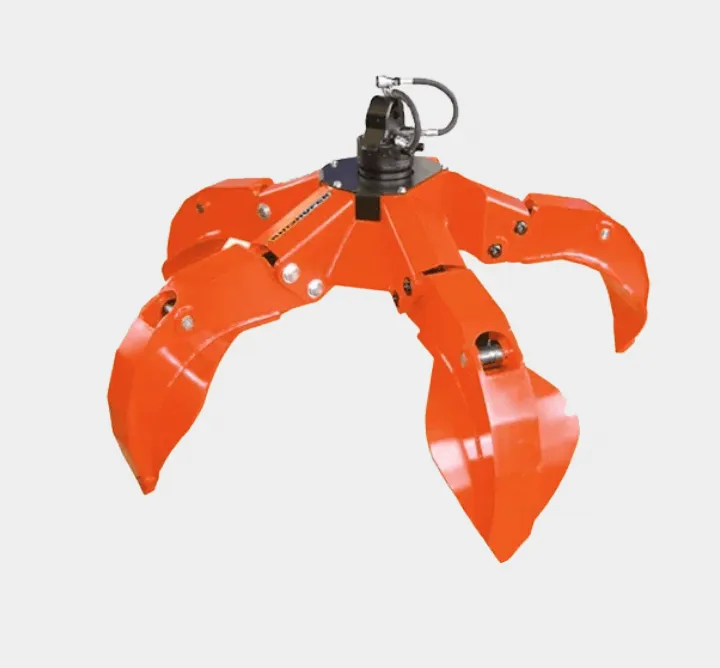

FMT Orange Peel Grapples

Orange Peel Grappler for handling of bulky scrap, loose waste, steel, wood and many other things.

  • Using NM500 wear-resistant steel, light weight and wear-resistant
  • The pin shaft adopts 42CrMo alloy steel with built-in oil passage, high strength and good toughness
  • Optional imported rotary motor
  • The rotating type uses a vertical motor motor rotation system, 360 ° rotation, with brake braking function
  • The oil cylinder adopts honing pipe and imported HALLITE oil seal, with short working period and long service life
Description / Model Unit FMTCS-1 FMTCS-2 FMTCS-3
Number of tines Piece 4/5 4/5 4/5
Rotatory Optional Optional Optional
Suitable Excavator Ton 06-09 10-17 18-25
Weight Kg 335/420 850/1000 1700/1950
Max Open Jaw Mm 1200 1900 2500
Height Of Opened Grapple Mm 1000 1550 2000
Working Pressure Bar 200 260 320
Working Flow lpm 50-100 60-120 200-250
Load capacity (kg) M3 0.3 0.5 1

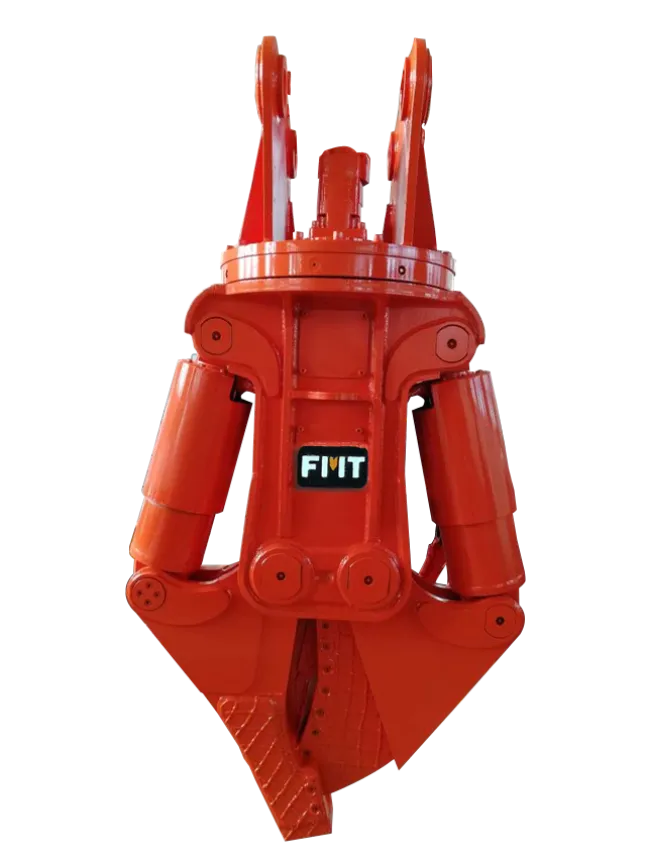

FMT Hydraulic Jaw Shear/ Jaw Crusher

  • Mode of special strength material.
  • High wear resistance and high operating flexibility.
  • To choose from a variety of cut tooth.
  • It is equipped with replaceable cuttor.
  • Can be used for demolition of concrete and steel structures.
Model / Item FMJC04 FMJC06 FMJC08 FMJC10 FMJC14
Weight (KG) 1413 2200 2977 4052
Height(mm) A 1521 2050 2380 2600 2700
Width(mm) B 864 1175 1370 1600 1700
Opening(mm) C 235 340 540 509 611
D 335.5 540 500 660 801
Crushing force(ton) E 81 138 171 330 387
F 50 80 102 189 218
G 32 53 75 127 147
Rotation type 360°collision 360 360 360 360
Pressure(bar) 250 300 300 320 320
Working oil clumber(L/min) 70 200-220 200-250 240-280 300-320
Closing time(s) 2.4 1.5 2.3 3 4
Opening time(s) 1.7 1 1.4 1.7 2
Suitable excavator(TON) 5-8 15 20 30 40
Remark cylinder diameter 160 180 210 250 280
Remark rod diameter 90 130 160 180 200

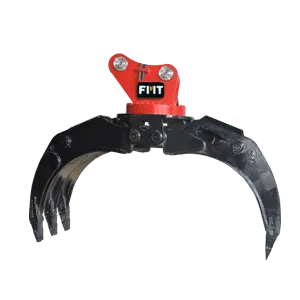

FMT Hydraulic Wood Grapple

  • Each FMT Hydraulic Grapple is equipped with hydraulic cylinder for protecting device; to ensure safe operation and convenient use.
  • Applied built is safety-volve to prevent sudden stop of cylinder.
  • Equipped with a large cylinder that enhances grab power.
  • Every pin is greaseable with protected grease nipples designed for long life.
  • FMT Wood Grapple's are equipped with continuous 360 degree rotation.
Model Unit FMTG15 FMT G20 FMT G25
Weight Kg 750 1380 1700
Max jaw opening mm 1800 2300 2500
Oil Pressure Kg/c㎡ 150-170 160-180 160-180
Set up pressure Kg/c㎡ 190 200 210
Operating flux L/min 90-110 100-140 130-170
Cylinder volume Ton 8.0X2 9.7X2 12X2
Suitable excavator Ton 7-15 17-23 24-30

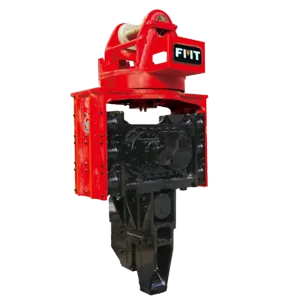

FMT Hydraulic Pile Hammer

  • FMT Hydraulic Pile Hammer is powered by oil pressure. It can adjust oil pressure according to different soil condition.
  • According to set bearing it digs into ground exactly.
  • Pile hammer is attached on front of frame, between two parallel guide-bars which helps vertical movement. Pile Hammer is used in those conditions where soil is very soft and to create strong foundation.
MODEL UNIT FD08 FD10 FD14
Weight Kg 1530 1850 1990
Eccentric Torque nm 33 39 50
Vibration Frequency rpm 3000 2700 2700
Pressure bar 280 285 300
Hydraulic Pump Flow Ipm 188 220 250
Suitable Excavator ton 20-24 24-32 30-40

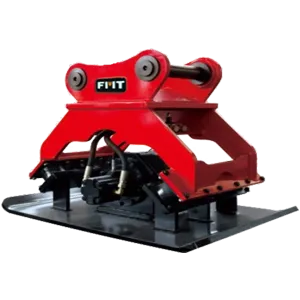

FMT Hydraulic Compactor

  • FMT Hydraulic Compactor is designed and produced by imported technology.
  • It is applicable to any position, such as flat surface compaction, pipe side compaction, complicated substructure compaction and local ramming operation.
  • Mainly applicable to bridge abutment, old and new road joints, road shoulder, road side slope, railway ground compaction, bank and side slope compaction, private construction base, trench and backfill compaction, mud road repair compaction, pipe side and mouth of well compaction.
  • We use high strength wear-resistant plate and high quality hydraulic motor parts for more efficiency.
MODEL UNIT FZ300 FZ600 FZ800 FZ1000
Impulse Force ton 4 6.5 15 15
Vibration Frequency rpm 2000 2000 2000 2000
Oil Flow l/min 45-75 85-105 120-170 120-170
Operating Pressure kg/cm2 100-130 100-130 150-200 150-200
Weight kg 400 750 1000 1100
Bottom Measurement l*w*t mm 900*500*25 1160*700*28 1350*900*30 1350*900*30
Height mm 760 920 1060 1100
Width mm 550 700 900 900
Suitable Excavator ton 4-9 11-16 17-23 23-30
