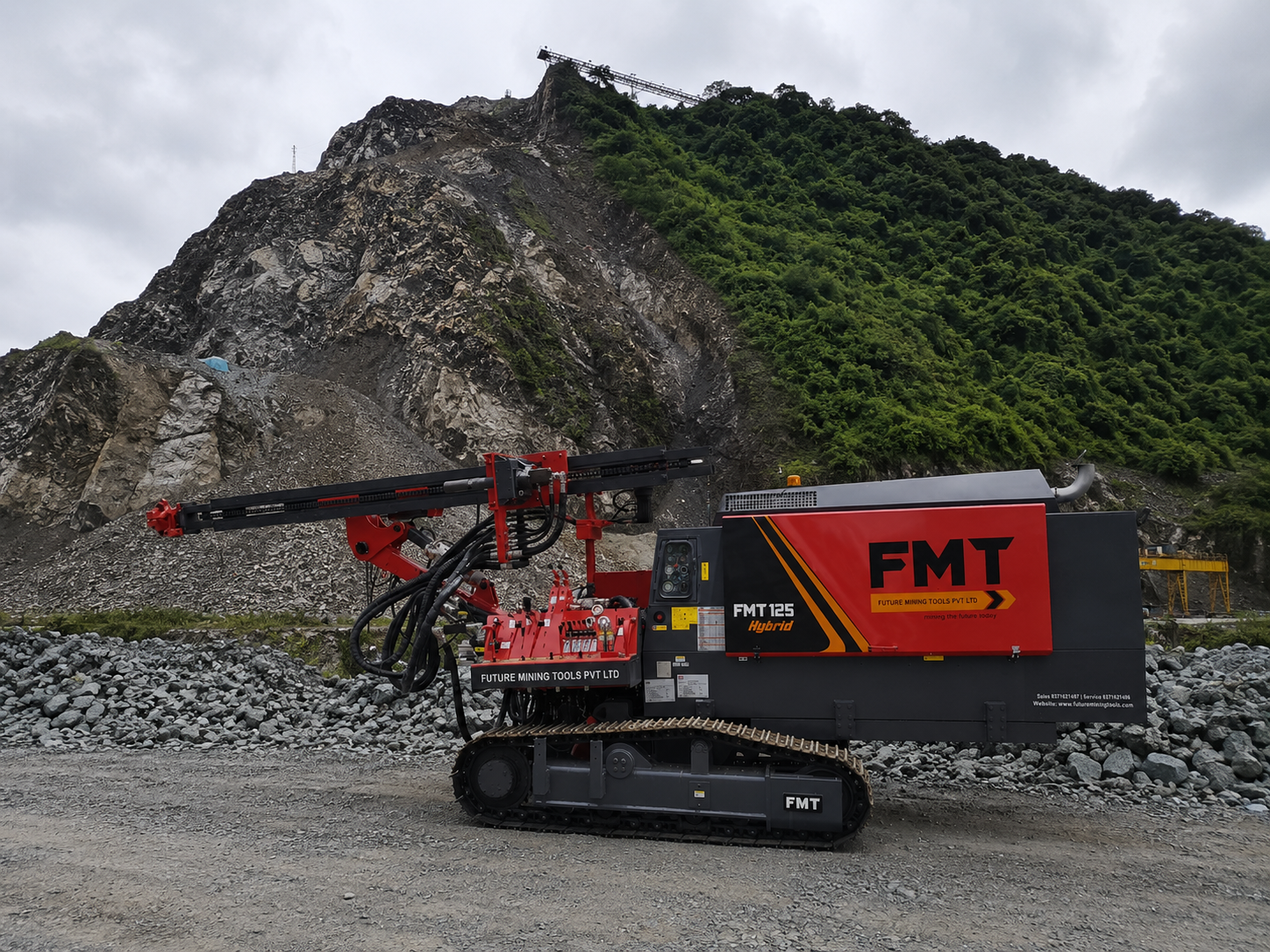

FMT 125 Hybrid – Compact DTH Drill Rig

Versatile, rugged drilling with an onboard compressor.

The FMT 125 Hybrid is called the compact solution drill rig, with its versatility, rugged construction and superior technical features. With an onboard compressor, it is suitable for drilling 90-115 mm diameter holes by the DTH method.

It is ideal for blast-hole production drilling in quarries, or for surface mining or construction work.

The traction motors and oscillation system provide excellent maneuverability in the toughest terrain.

Yes! I am Interested View specifications

Request Callback

Get Best Quote

Product specification

Technical specification of the FMT 125 Hybrid.

Specification	Unit	FMT 125 Hybrid
Bore Hole Diameter	mm	76-115 (DTH) / 45-64 (TH, Pneumatic)
Max Hole Depth	m	15-18 (DTH) / 6 (TH)
On Board Air Compressor (Atlas Copco)	bar	12-15
Total Track Length on Ground	mm	2750
Minimum Ground Clearance	mm	400
Fuel Tank Capacity	liters	210
Travel Speed (Max)	km/h	0-2.2
Maximum Track Force	kN	48
Track Oscillation	Type	Through two hydraulic cylinders
Grade-ability	degree	±15°
Rotary Head	Type	Hydraulic motor
Rotary Head Speed	rpm	0-80
Rotation Torque (Drilling)	Nm	1500
Rotation Torque (Breaking)	Nm	2100
Feed Gear Box Force (Pull Down)	kN	18
Feed Gear Box Force (Pull Up)	kN	13

Not sure if this rig suits your job? Ask our team.

Key highlights of the FMT 125 Hybrid

Fully hydraulic undercarriage track assembly with hydraulic track oscillation for the most uneven ground

Onboard compressor with 12-15 bar

Night light for work in low light

High ground clearance of 400 mm

Easy repair and maintenance, with provision to access all control valves

Auto fire safety

Manual rod changer – 3 rods

Wet type dust suppression

DTH to top hammer conversion kit for 45-64 mm hole size

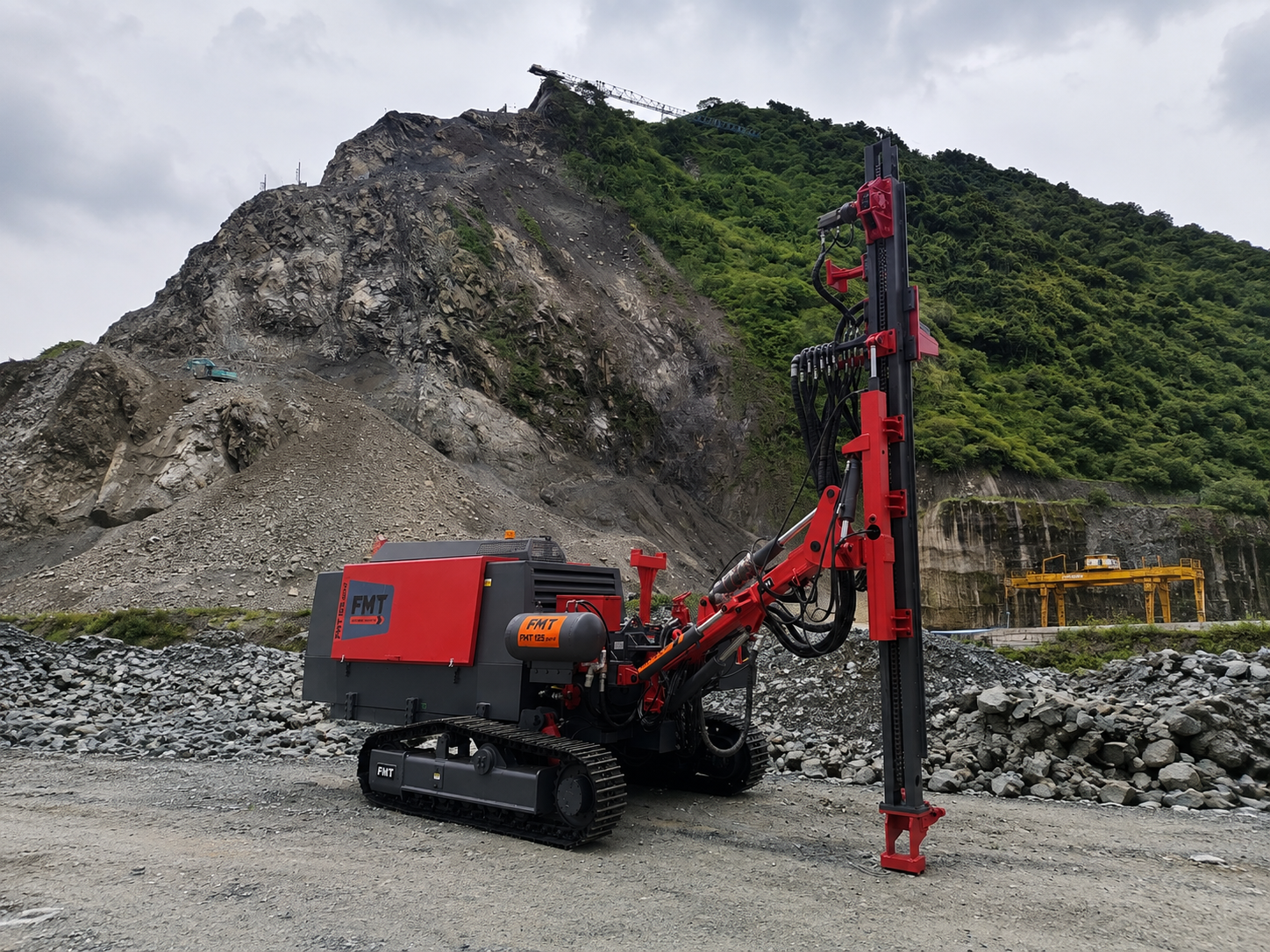

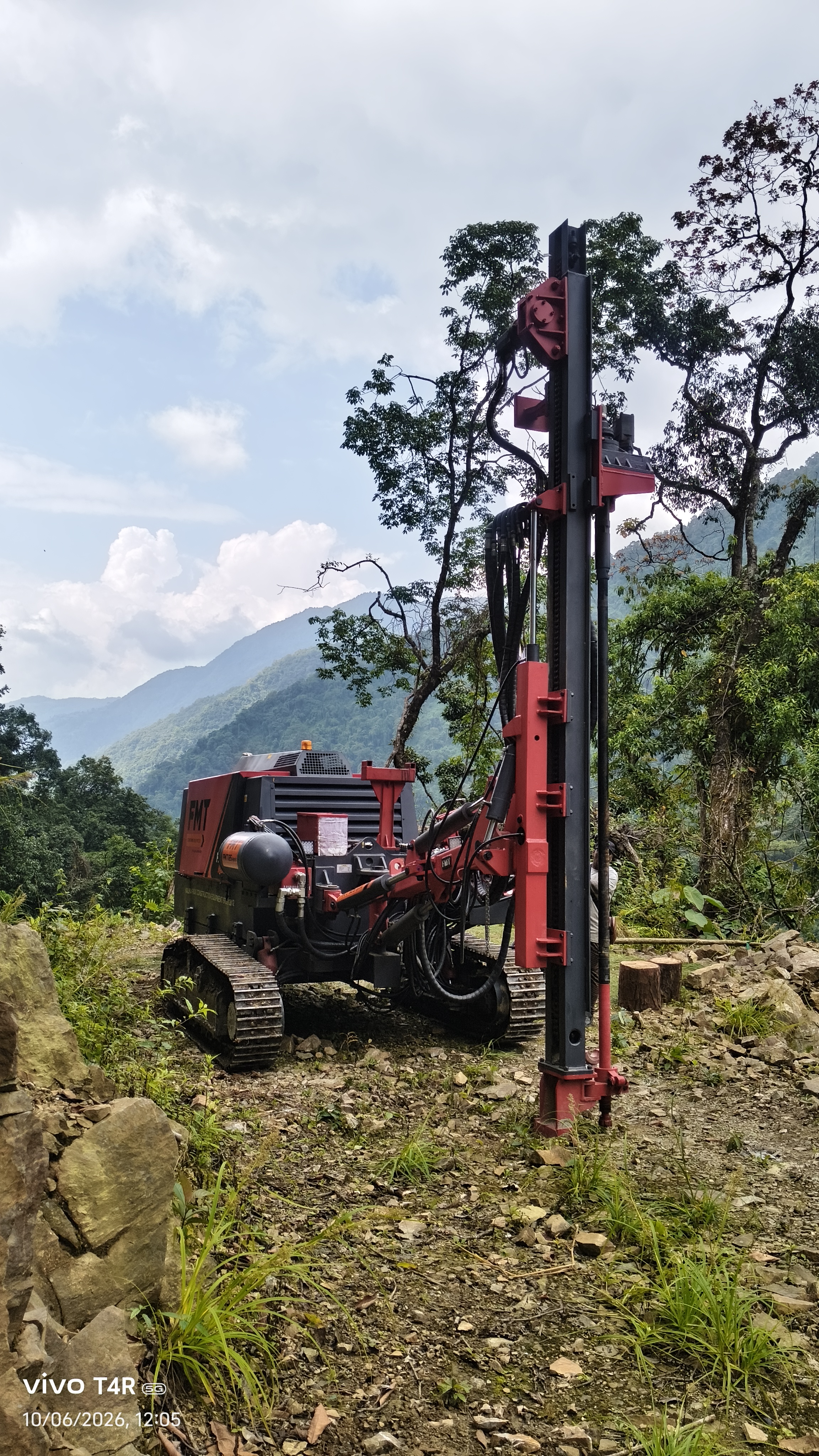

FMT 125 Hybrid at work

Applications

Made For The Places Where
Drilling Gets Tough.

The FMT 125 Hybrid is ideal for quarries, surface mining and construction work.

01 • QUARRIES

Blast-Hole Production Drilling

Ideal for blast-hole production drilling in quarries.

02 • SURFACE MINING

Surface Mining

Compact, versatile rig suited to surface mining work.

03 • CONSTRUCTION

Construction Work

Traction motors and oscillation system give excellent maneuverability in the toughest terrain.

More hydraulic crawler drills

Other machines in the FMT hydraulic crawler drill range.

FAQs about the FMT 125 Hybrid

Can't find what you're looking for? Contact us here:

sales@FutureMiningTools.com

What is the FMT 125 Hybrid?

The FMT 125 Hybrid is a compact solution drill rig with an onboard compressor, ideal for blast-hole production drilling in quarries, surface mining and construction work.

What hole diameter can it drill?

It drills 76-115 mm holes by the DTH method, and 45-64 mm holes with the DTH to top hammer conversion kit.

What is the maximum hole depth?

Up to 15-18 m with DTH and 6 m with top hammer (TH).

Does it have an onboard compressor?

Yes. It has an onboard Atlas Copco air compressor rated at 12-15 bar.

What is the ground clearance?

The minimum ground clearance is 400 mm, and hydraulic track oscillation helps on uneven ground.

Does it have dust suppression?

Yes. Wet type dust suppression is included.

How do I get a quote?

Click Send inquiry or email sales@FutureMiningTools.com with your application and hole size.
