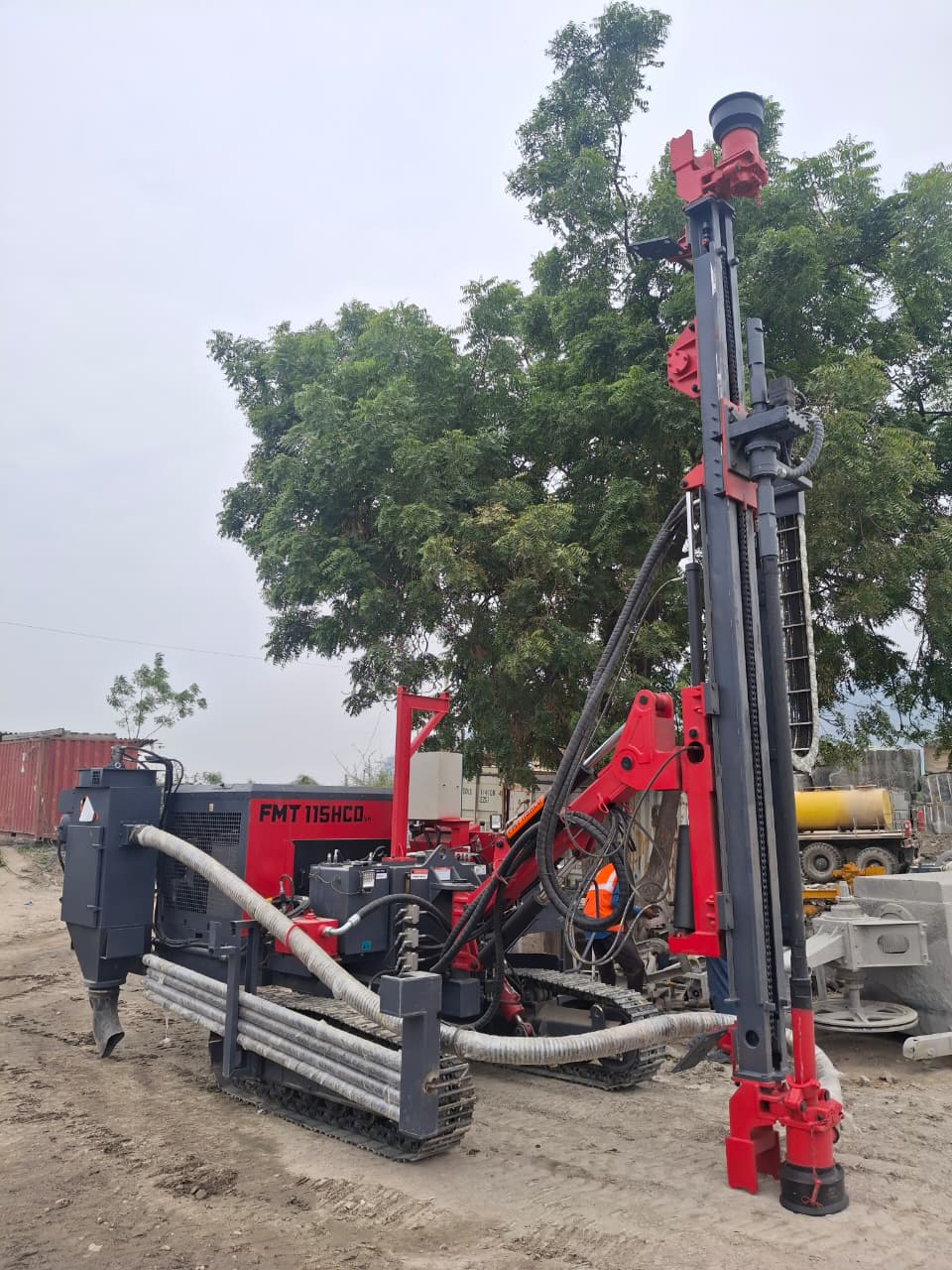

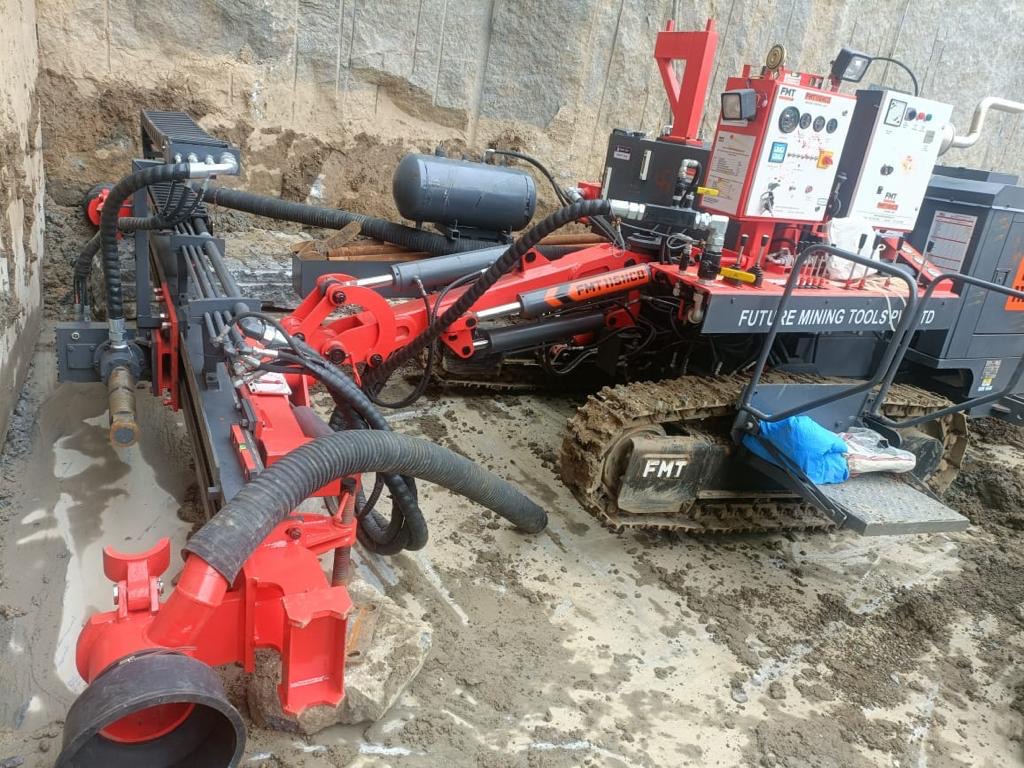

FMT 115 VH Hole Matching Machine

A heavy-duty vertical-horizontal DTH drill built for accurate, consistent hole matching in granite quarries.

FMT 115 VH – Hole Matching Machine

Vertical horizontal DTH drilling for granite quarries.

The FMT 115 VH is a heavy-duty hole matching machine specially designed for granite quarries, delivering accurate, consistent and efficient hole matching performance.

Built for demanding quarry conditions, it combines high productivity, fuel efficiency and easy maintenance.

It is a pure hydraulic crawler drill with multiple power options: diesel engine, electric, or hybrid (engine + electric).

Yes! I am Intrested View specifications

Request Callback

Get Best Quote

Product specification

Technical specification of the FMT 115 VH in engine-only and engine + electric versions.

Specification	Unit	FMT 115 VH Engine Only	FMT 115 VH+E Engine + Electric
Type	Type	DTH	DTH
Hole Diameter (Standard)	mm	105-130	105-130
Engine	HP / RPM	80 hp @ 2100 rpm	80 hp @ 2100 rpm
Electric Motor	kW	No	22 kW
Speed	km/hr	0-3	0-3
Rotation Type	nos	Dual Side	Dual Side
Feed Chain	inch	1 1/4"	1 1/4"
Rotation Torque	kNm	2010	2010
Rotation Speed	max rpm	0-80	0-80
Feed Force	kN	12	12
Feed Type	Type	Motor	Motor
Rod Length	m (ft)	3 (10)	3 (10)
Ground Clearance	mm	255	255
Track Oscillation	Type	Cylinder	Cylinder
Rod Stand		Yes	Yes
Wet Type Dust Suppression		Yes	Yes
Dust Collector		Optional	Optional
Suitable Compressor	CFM / PSI	450-600 cfm @ 175-225 psi	450-600 cfm @ 175-225 psi

Not sure which version suits your job? Ask our team.

Key highlights of the FMT 115 VH

Best-in-class hole matching performance

Heavy-duty construction for granite quarry applications

Fuel-efficient, with diesel, electric or hybrid (engine + electric) power options

Pure hydraulic crawler drill; hydraulic feed, rotation and traction add to the drilling rate

Automatic brakes and emergency stop button for safe operation

More ground clearance; optional water injection / dust collector

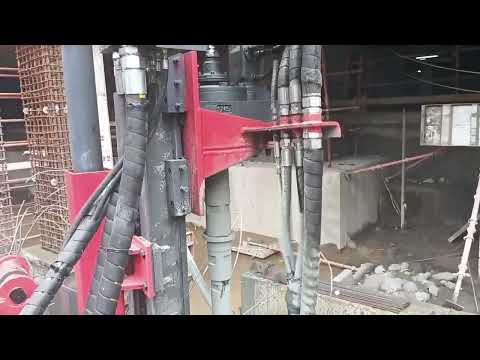

FMT 115 VH Hole Matching Machine at work

Applications

Made For The Places Where
Drilling Gets Tough.

The FMT 115 VH is designed for hole matching in granite quarries.

01 • GRANITE QUARRIES

Granite Quarry Drilling

Specially designed for granite quarries.

02 • HOLE MATCHING

Accurate Hole Matching

Accurate, consistent and efficient hole matching performance.

03 • TOUGH CONDITIONS

Reliable In Tough Conditions

Designed for reliable performance in tough granite quarry conditions.

More hydraulic crawler drills

Other machines in the FMT hydraulic crawler drill range.

FAQs about the FMT 115 VH Hole Matching Machine

Can't find what you're looking for? Contact us here:

sales@FutureMiningTools.com

What is the FMT 115 VH?

The FMT 115 VH is a heavy-duty vertical horizontal DTH drill, built as a hole matching machine for granite quarries.

What power options are available?

You can choose a diesel engine, electric, or hybrid (engine + electric). The engine is 80 hp @ 2100 rpm and the electric motor is 22 kW.

What hole diameter can it drill?

The standard hole diameter is 105-130 mm.

Does it have dust suppression?

Yes. Wet type dust suppression is included, and a dust collector is optional.

What compressor does it need?

A 450-600 cfm compressor at 175-225 psi.

How do I get a quote?

Click Send inquiry or email sales@FutureMiningTools.com with your quarry application and hole size.
