FMT 115 PRO Crawler Drill

A compact high power DTH drill for blast-hole production drilling in quarries, with 115-200 mm drilling and 115-250 mm rock anchoring.

FMT 115 PRO DTH Crawler Drill

Compact, rugged and fuel efficient.

The FMT 115 PRO is a compact high power DTH drill. With its versatility, rugged construction and superior technical features, this drill is highly reliable and more efficient.

The traction motors and oscillation system provide excellent manoeuvrability in the toughest terrain, and the drill gives you clear, visible benefits in fuel consumption.

It is ideal for blast-hole production drilling in quarries.

Yes! I am Intrested View specifications

Request Callback

Get Best Quote

Product specification

Technical specification of the FMT 115 PRO.

Specification	Unit	FMT 115 PRO
Type	Type	DTH
Hole Diameter (Standard)	mm	115-200 mm / 115-250 mm rock anchoring
Hole Depth (DTH)	m (ft)	Up to 30-40 m in 115-150 mm; up to 15 m in 151-200 mm
Hole Depth in Anchoring	m (ft)	Up to 30-35 m
Engine	HP / RPM	130 hp @ 2000 rpm
Suitable Compressor	CFM / PSI	450-1200 cfm @ 175-300 psi
Rod Length	m (ft)	3 (10)
Gradability	%	30%
Ground Clearance	mm	255
Rotation Speed	rpm	0-110
Rotation Torque	lbs	3500
Feed Type	Type	Cylinder
Feed Force (Pushing / Pulling)	kN	69 / 35
Speed	km/hr	0-3.5
Hammer	inch	4 or 4 3/4 or 5
Hydraulic System	Type	Gear Pump
Feed, Rotation, Tramming	Type	Hydraulic
Track Oscillation	Type	Through two hydraulic cylinders
Weight	kg	6,200 (approx.)

Not sure this drill suits your job? Ask our team.

Key features of the FMT 115 PRO

130 HP engine

DTH hole size 115-200 mm; anchoring drill 115-250 mm

Auto parking brakes and de-clutching system

More ground clearance for uneven ground, and easy to transport

Reverse horn, beacon light and horn

Emergency stop button

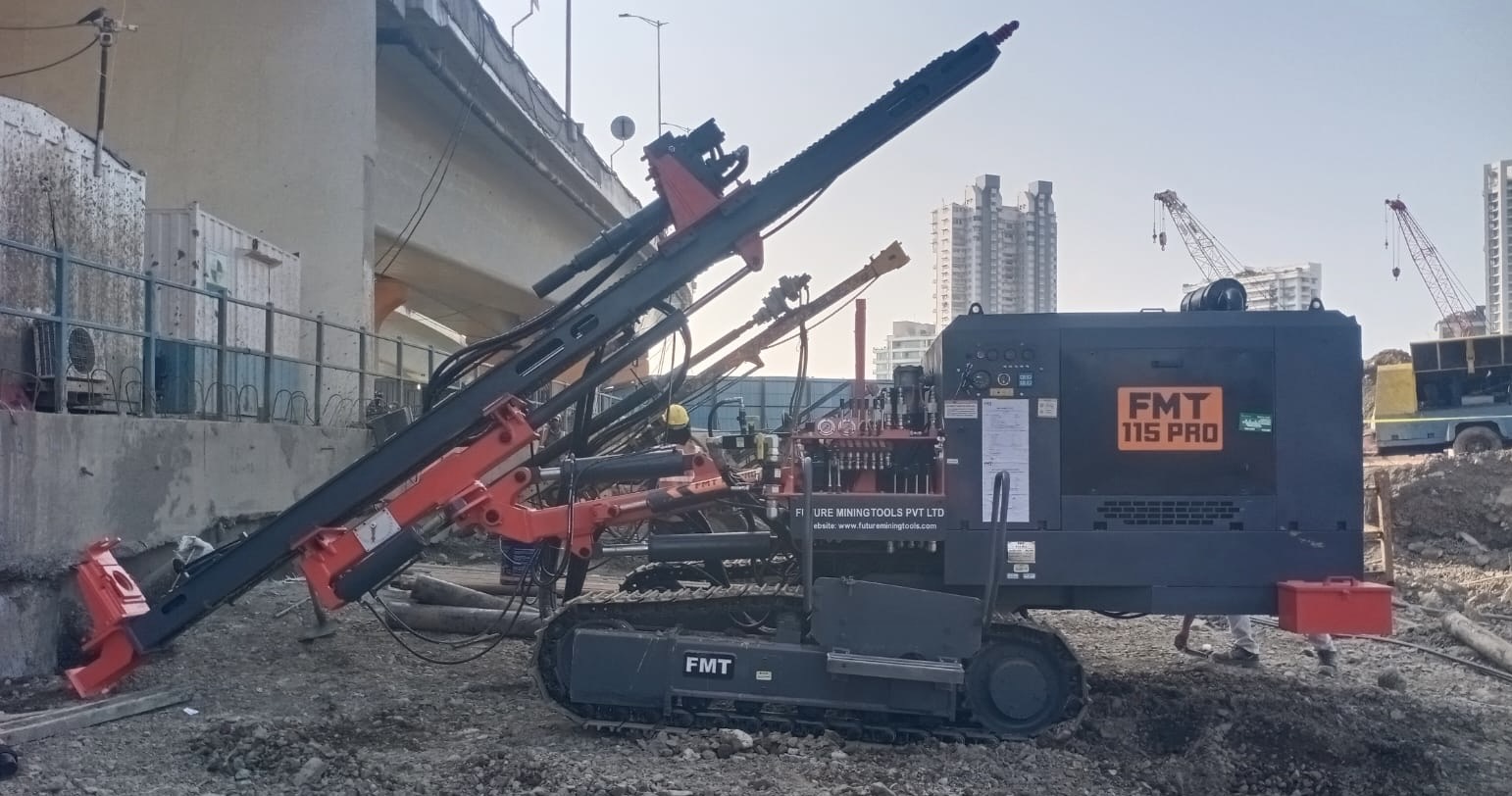

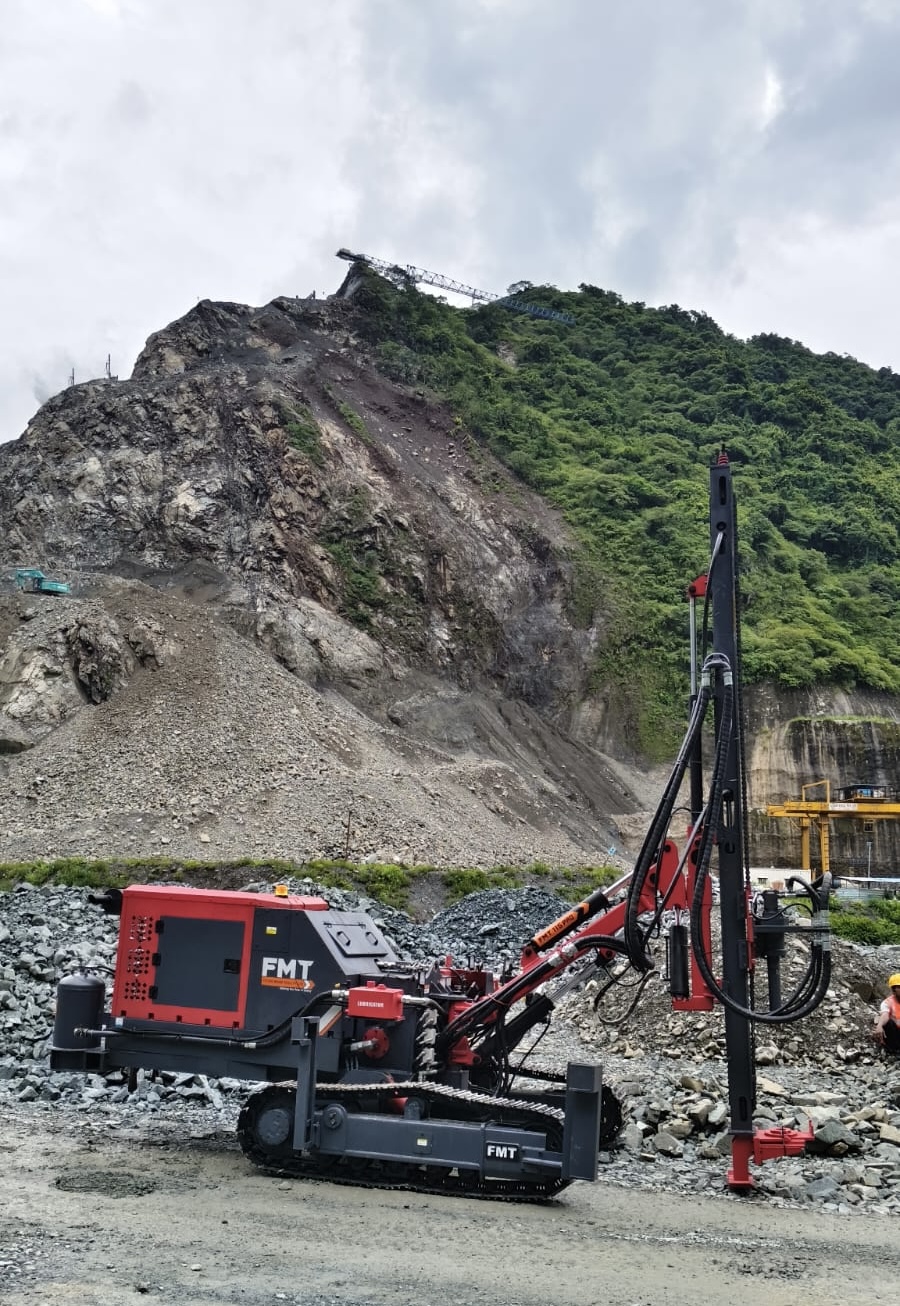

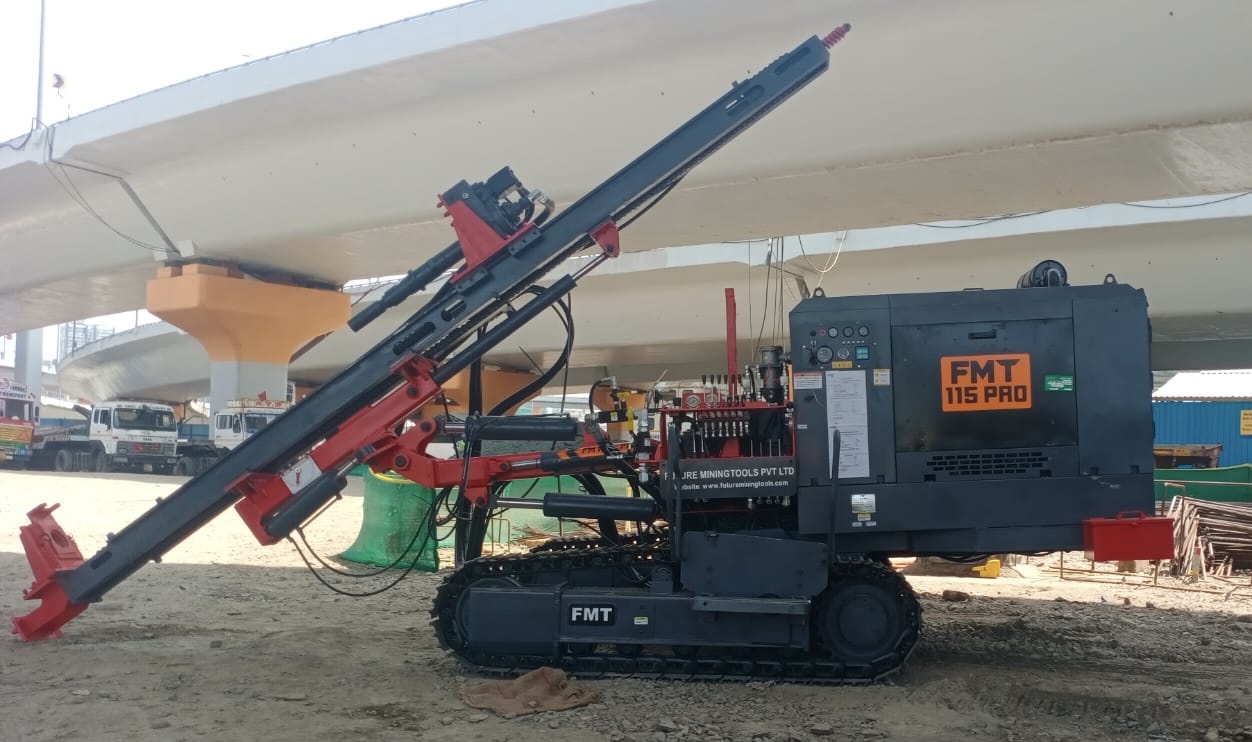

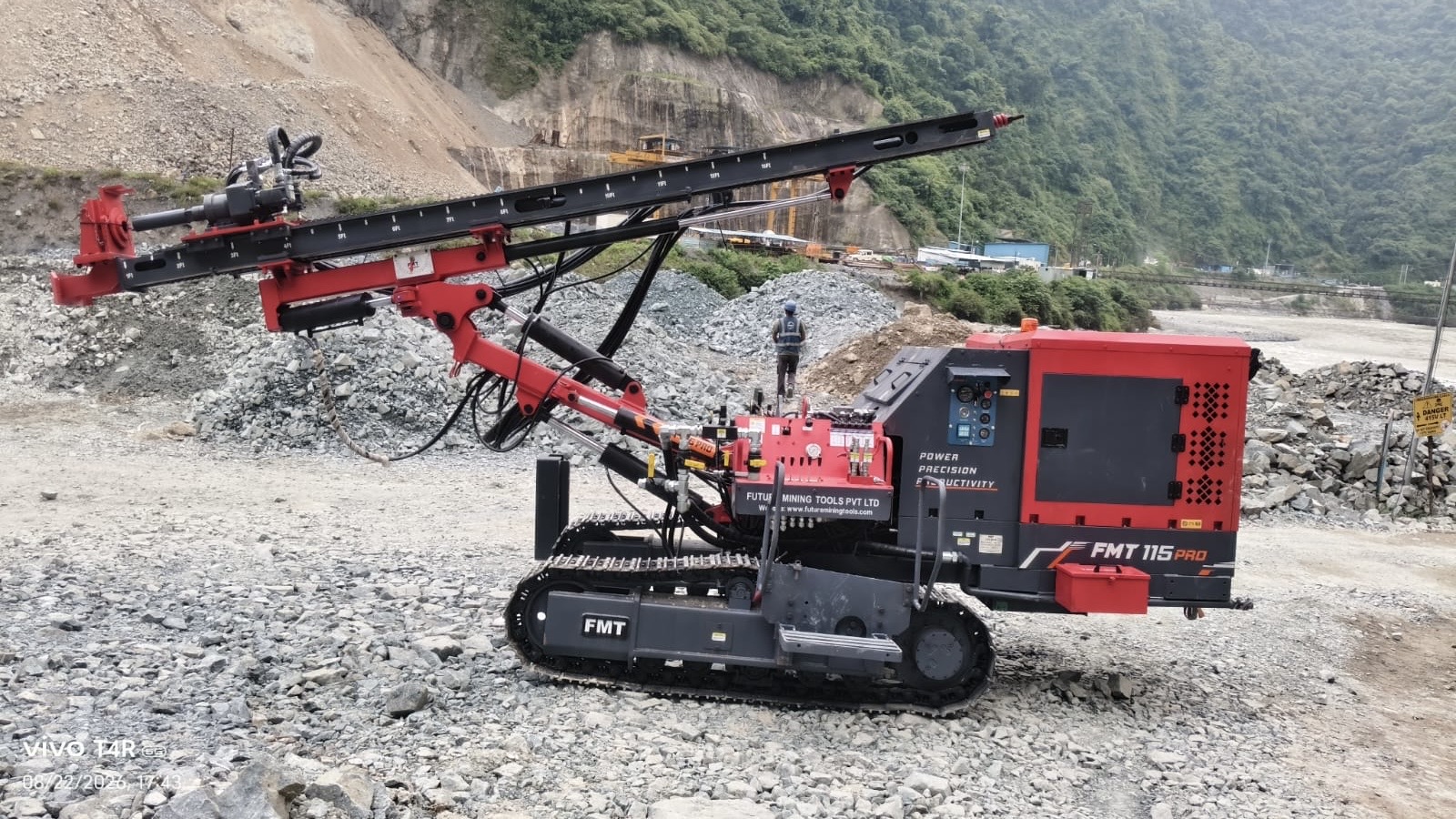

FMT 115 PRO Crawler Drill at work

Applications

Made For The Places Where
Drilling Gets Tough.

The FMT 115 PRO is built for blast-hole production drilling in quarries, with an anchoring drill option for 115-250 mm holes.

01 • QUARRIES

Quarry Blast-Hole Drilling

Ideal for blast-hole production drilling in quarries.

02 • ANCHORING

Rock Anchoring

Anchoring drill for 115-250 mm holes.

03 • TOUGH TERRAIN

More Ground Clearance

Extra ground clearance for uneven ground and easy transport.

More hydraulic crawler drills

Other machines in the FMT hydraulic crawler drill range.

FAQs about the FMT 115 PRO Crawler Drill

Can't find what you're looking for? Contact us here:

sales@FutureMiningTools.com

What is the FMT 115 PRO?

The FMT 115 PRO is a compact high power DTH drill for blast-hole production drilling in quarries.

What hole sizes can it drill?

DTH drilling covers 115-200 mm holes. As an anchoring drill it covers 115-250 mm.

How deep can it drill?

Up to 30-40 m in 115-150 mm holes and up to 15 m in 151-200 mm holes. In anchoring, up to 30-35 m.

What engine does it have?

A 130 hp engine at 2000 rpm.

What is the machine weight?

Approximately 6,200 kg.

How do I get a quote?

Click Send inquiry or email sales@FutureMiningTools.com with your application and hole size.
