FMT 115 Flexi Drill

A compact high power DTH drill for blast-hole production drilling in quarries, with hole sizes from 115 to 300 mm.

FMT 115 Flexi DTH Drill

Compact, rugged and versatile.

The FMT 115 Flexi Drill is a compact high power DTH drill. With its versatility, rugged construction and superior technical features, this drill is highly reliable and more efficient.

The traction motors and oscillation system provide excellent manoeuvrability in the toughest terrain, and the drill gives you clear, visible benefits in fuel consumption.

It is ideal for blast-hole production drilling in quarries, and its heavy-duty rotation gear box suits versatile work.

Yes! I am Intrested View specifications

Request Callback

Get Best Quote

Product specification

Technical specification of the FMT 115 Flexi Drill.

Specification	Unit	FMT 115 Flexi Drill
Weight	kg	7500 (approx.)
Type	Type	DTH
Hole Diameter (Standard)	mm	115-300
Hole Depth	m (ft)	Up to 30 m for 115-200 mm; up to 25 m for 200-240 mm; up to 6-10 m for 250-300 mm
Engine	HP / RPM	130 hp @ 2000 rpm or 170 hp @ 2000 rpm
Suitable Compressor	CFM / PSI	1100-1200 cfm @ 200-300 psi
Rod Length	m (ft)	3 (10)
Gradability	%	30%
Ground Clearance	mm	255
Speed	km/hr	0-3.5
Feed Chain	inch	2
Hammer	inch	4 to 7
Hydraulic System	Type	Gear Pump
Feed, Rotation, Tramming	Type	Hydraulic
Rod Catcher	Type	2 or 4 cylinder (optional)

*Hole depth or drilling speed will depend upon site, compressor used, operator, hammer and engine.

Not sure this drill suits your job? Ask our team.

Key features of the FMT 115 Flexi Drill

DTH hole size 115-300 mm

Engine 130 / 170 HP

Auto parking brakes and de-clutching system

Hydraulic feed, rotation and traction add to the drilling rate

Heavy-duty rotation gear box for versatile work

Wet type dust suppression and emergency stop button

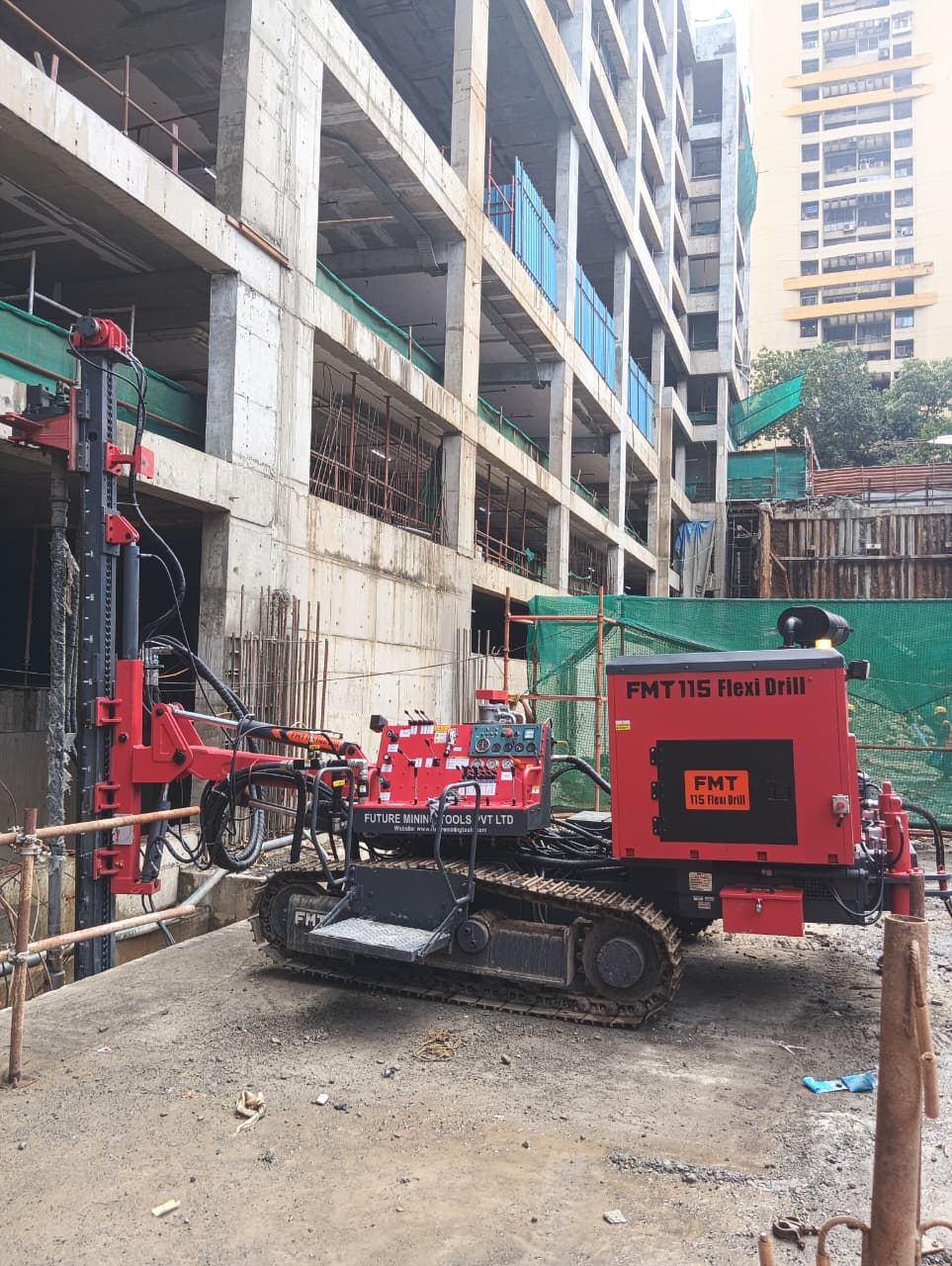

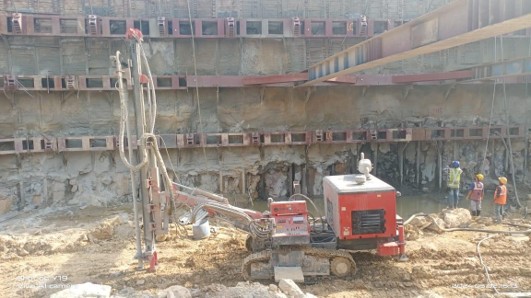

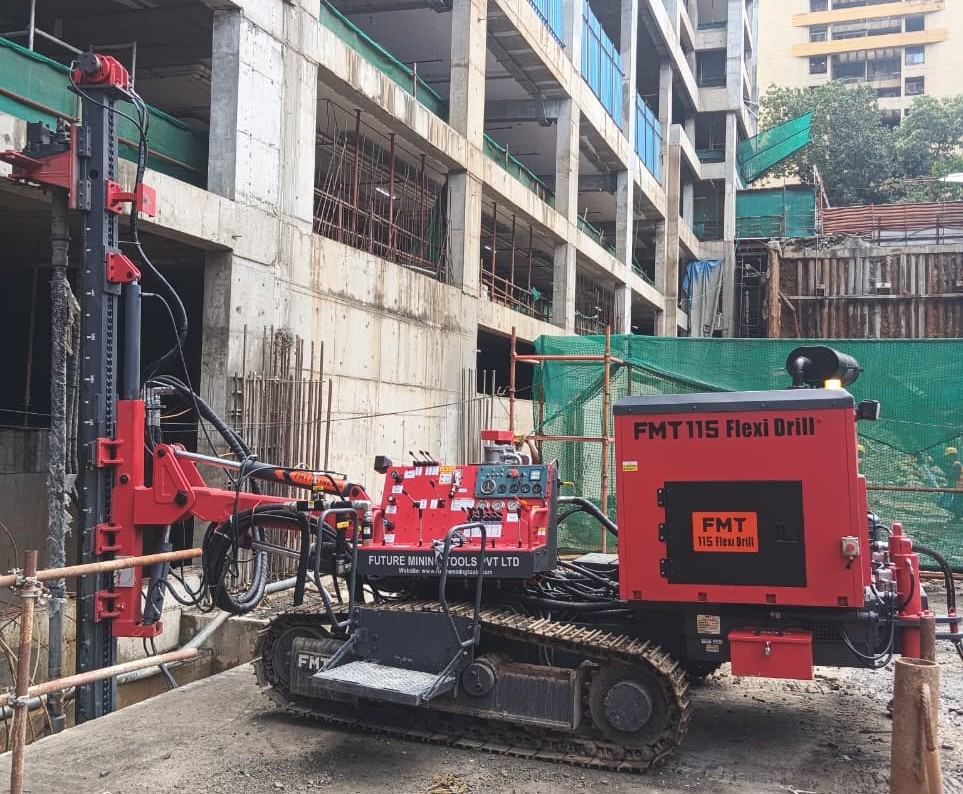

FMT 115 Flexi Drill at work

Applications

Made For The Places Where
Drilling Gets Tough.

The FMT 115 Flexi Drill is built for blast-hole production drilling in quarries.

01 • QUARRIES

Quarry Blast-Hole Drilling

Ideal for blast-hole production drilling in quarries.

02 • LARGE HOLES

Large Diameter Holes

Drills holes from 115 mm up to 300 mm.

03 • TOUGH TERRAIN

Excellent Manoeuvrability

Traction motors and oscillation system for the toughest terrain.

More hydraulic crawler drills

Other machines in the FMT hydraulic crawler drill range.

FAQs about the FMT 115 Flexi Drill

Can't find what you're looking for? Contact us here:

sales@FutureMiningTools.com

What is the FMT 115 Flexi Drill?

A compact high power DTH drill for blast-hole production drilling in quarries.

What hole sizes can it drill?

115-300 mm. A hammer from 4 to 7 inch is used.

How deep can it drill?

Up to 30 m for 115-200 mm, up to 25 m for 200-240 mm and up to 6-10 m for 250-300 mm. Depth depends on site, compressor, operator, hammer and engine.

What engine options are there?

130 hp or 170 hp, both at 2000 rpm.

What is the machine weight?

Approximately 7,500 kg.
