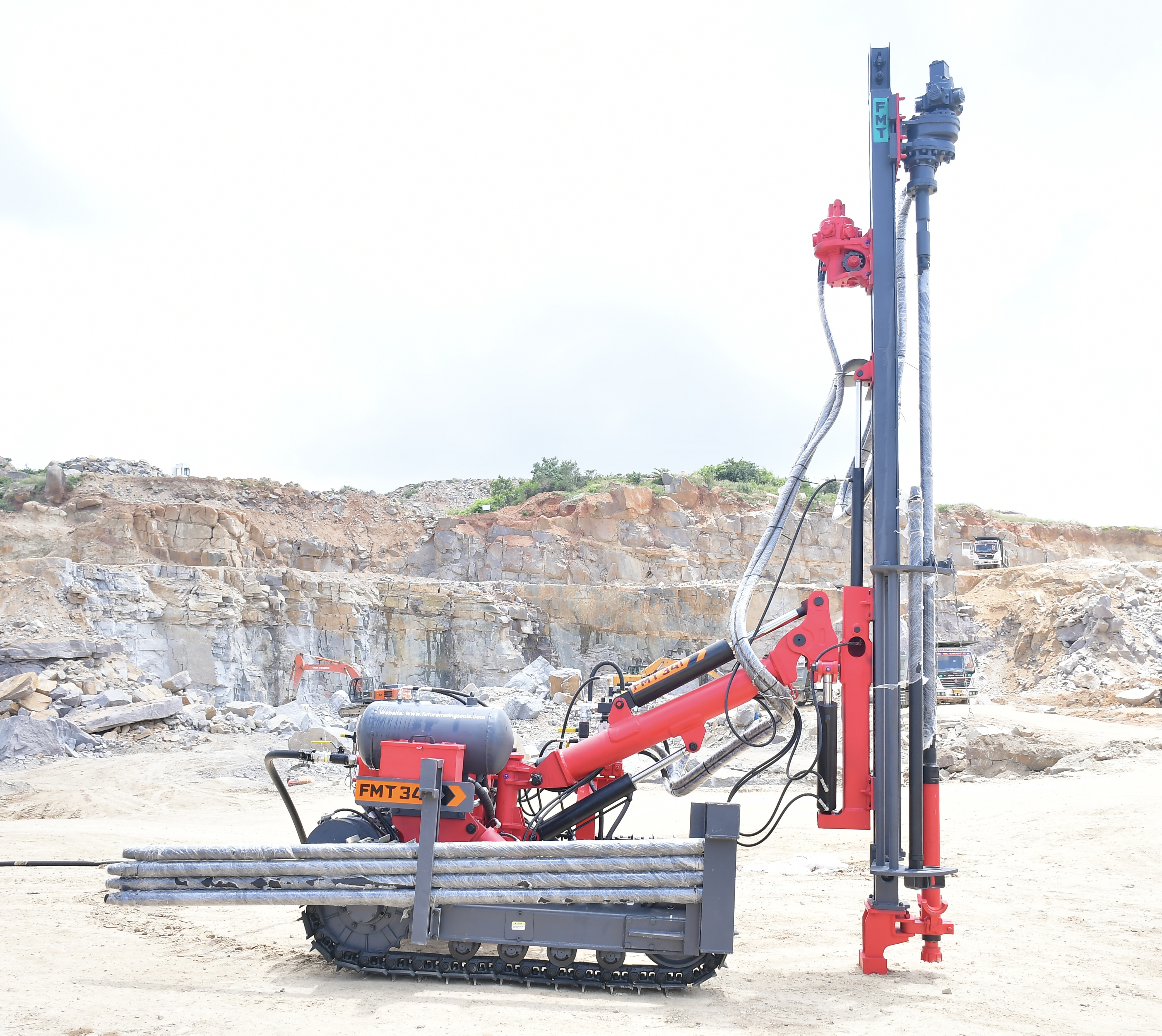

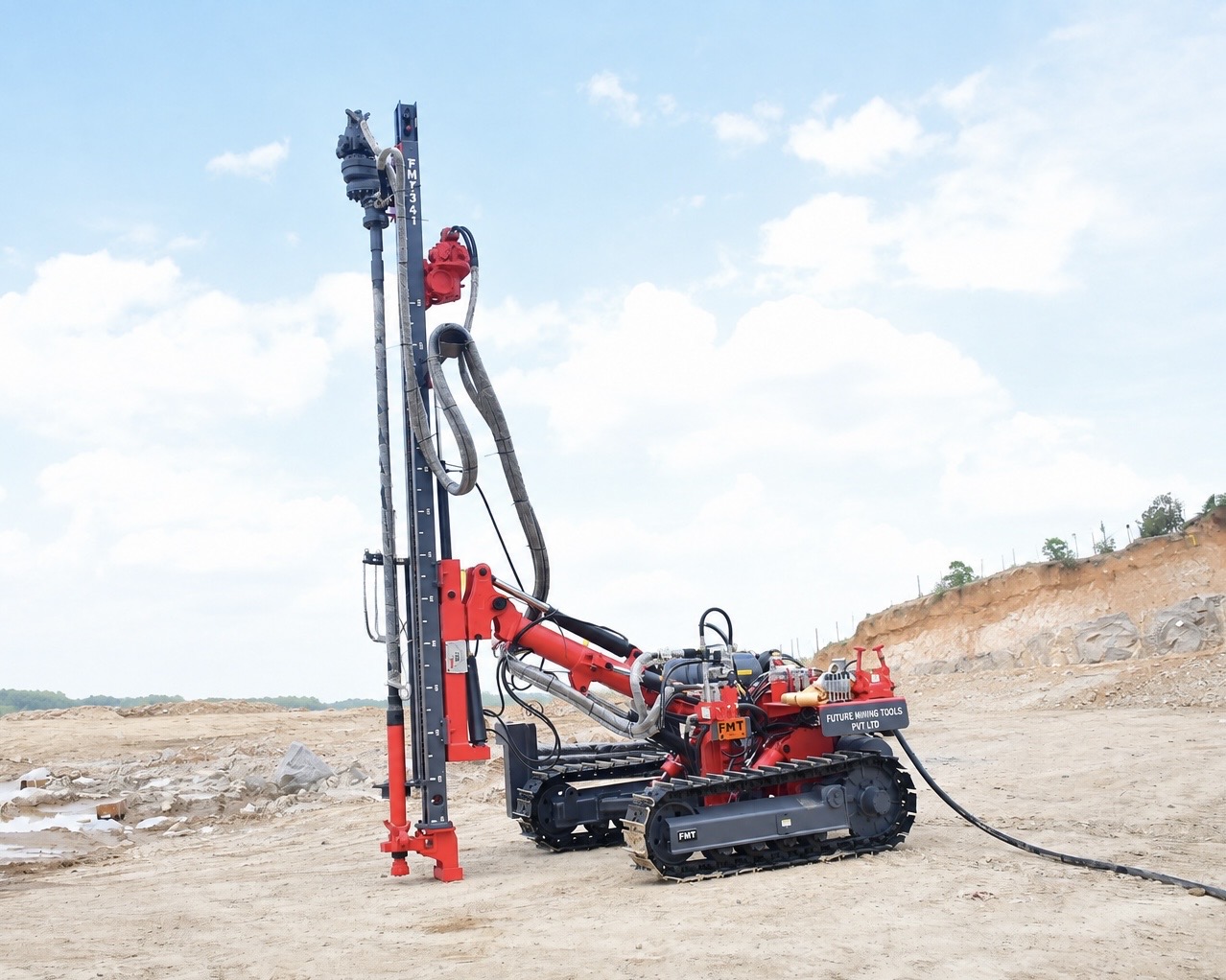

FMT 341 Crawler Drill

A compact, high power DTH/TH crawler drill for blast-hole production drilling in quarries, open mining and construction sites.

FMT 341 DTH/TH Crawler Drill

Compact, rugged and highly manoeuvrable.

The FMT 341 is a compact high power DTH/TH drill. With its versatility and rugged construction, this drill is highly reliable and more efficient.

The traction motors and oscillation system provide excellent manoeuvrability in the toughest terrain, giving you clear, visible benefits in performance.

It is ideal for blast-hole production drilling in quarries, open mining, construction sites and many more.

Yes! I am interested View specifications

Request Callback

Get Best Quote

Product specification

Technical specification of the FMT 341 in DTH and TH versions.

Specification	Unit	FMT 341 DTH	FMT 341 TH
Weight	kg	4800	4800
Type	Type	DTH	TH
Hole Diameter (Standard)	mm	76-130	32-70
Suitable Compressor	CFM / PSI	450-600 cfm @ 12-16 bar	450-600 cfm @ 8-10 bar
Max Hole Depth	m (ft)	30 (98)	20 (60)
Rod Length	m (ft)	3 (10)	3 (10)
Rotation Speed	rpm	70	70
Gradeability	%	35%	35%
Ground Clearance	mm	255	255
Speed Up To	km/hr	0-3.5	0-3.5
Track Pad Shoe Size	mm	255	255
Oil Tank Capacity	litres	55	55
Feed, Rotation	Type	Pneumatic	Pneumatic
Track Oscillation	Type	Through two hydraulic cylinders	Through two hydraulic cylinders

Not sure which version suits your job? Ask our team.

Key features of the FMT 341

Powerful rotation gear box

Auto parking brakes

Long mast

Oscillation cylinders for better manoeuvrability

Water injection

Rugged, compact build for the toughest terrain

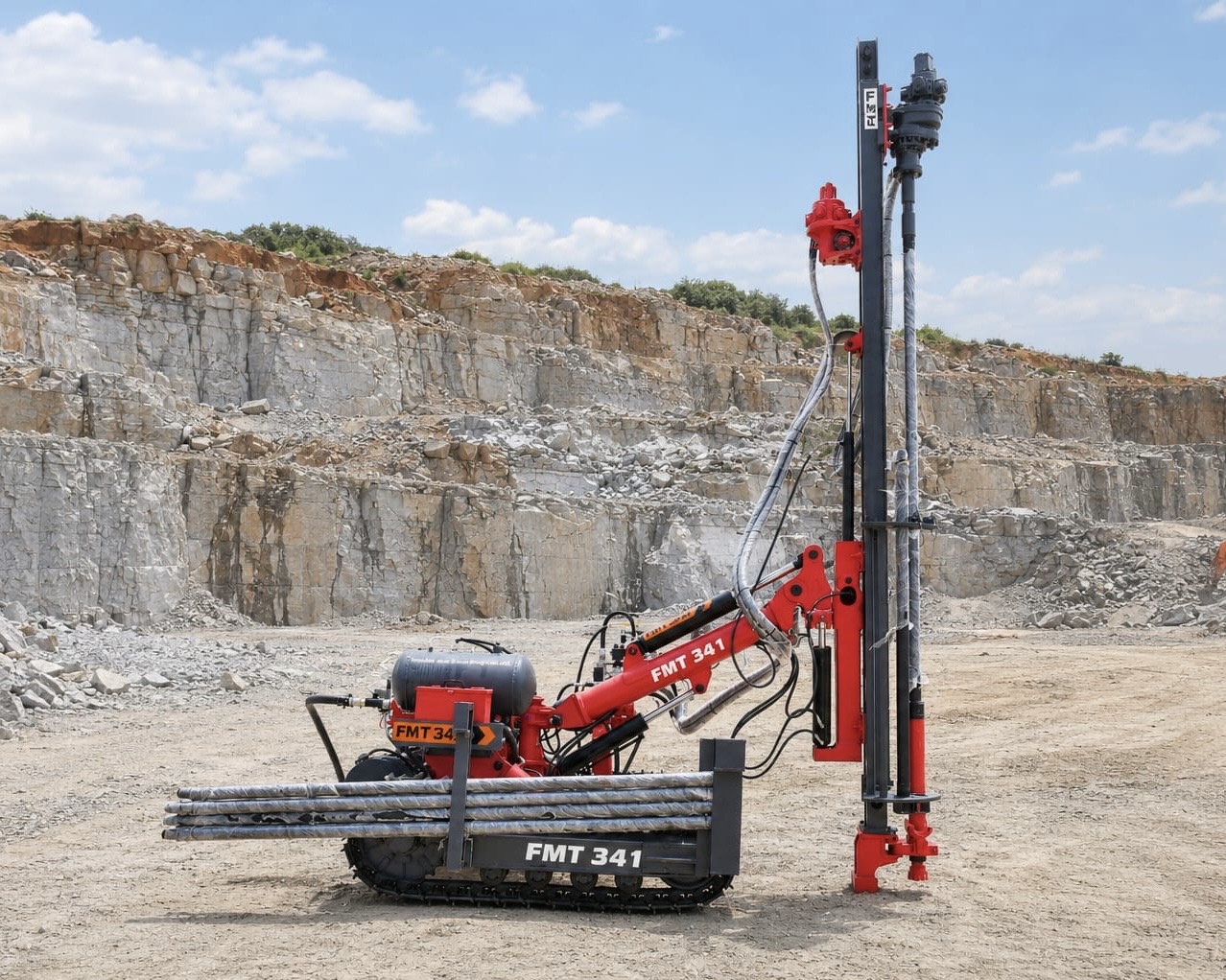

FMT 341 Crawler Drill at work

Applications

Made For The Places Where
Drilling Gets Tough.

The FMT 341 is built for blast-hole production drilling in quarries, open mining and construction sites.

01 • QUARRIES

Quarry Blast-Hole Drilling

Production drilling of blast holes in quarries.

02 • OPEN MINING

Open Mining

Reliable drilling for open mining operations.

03 • CONSTRUCTION

Construction Sites

Compact and manoeuvrable drilling for construction sites.

More crawler drills

Other machines in the FMT crawler drill range.

FAQs about the FMT 341 Crawler Drill

Can't find what you're looking for? Contact us here:

sales@FutureMiningTools.com

What is the FMT 341?

The FMT 341 is a compact high power DTH/TH crawler drill for blast-hole production drilling. It is available in a DTH version and a TH version.

What hole diameter can it drill?

The DTH version drills 76-130 mm holes and the TH version drills 32-70 mm holes.

What is the maximum hole depth?

The DTH version reaches 30 m (98 ft) and the TH version reaches 20 m (60 ft), using 3 m (10 ft) rods.

What compressor does it need?

Both versions suit a 450-600 cfm compressor. Use 12-16 bar for DTH and 8-10 bar for TH.

What is the machine weight?

The FMT 341 weighs 4800 kg.

How do I get a quote?

Click Send inquiry or email sales@FutureMiningTools.com with your application and hole size.
