FMT 125 HCD

A compact hydraulic crawler drill with onboard compressor for 76 to 115 mm DTH holes in quarries, surface mining and construction.

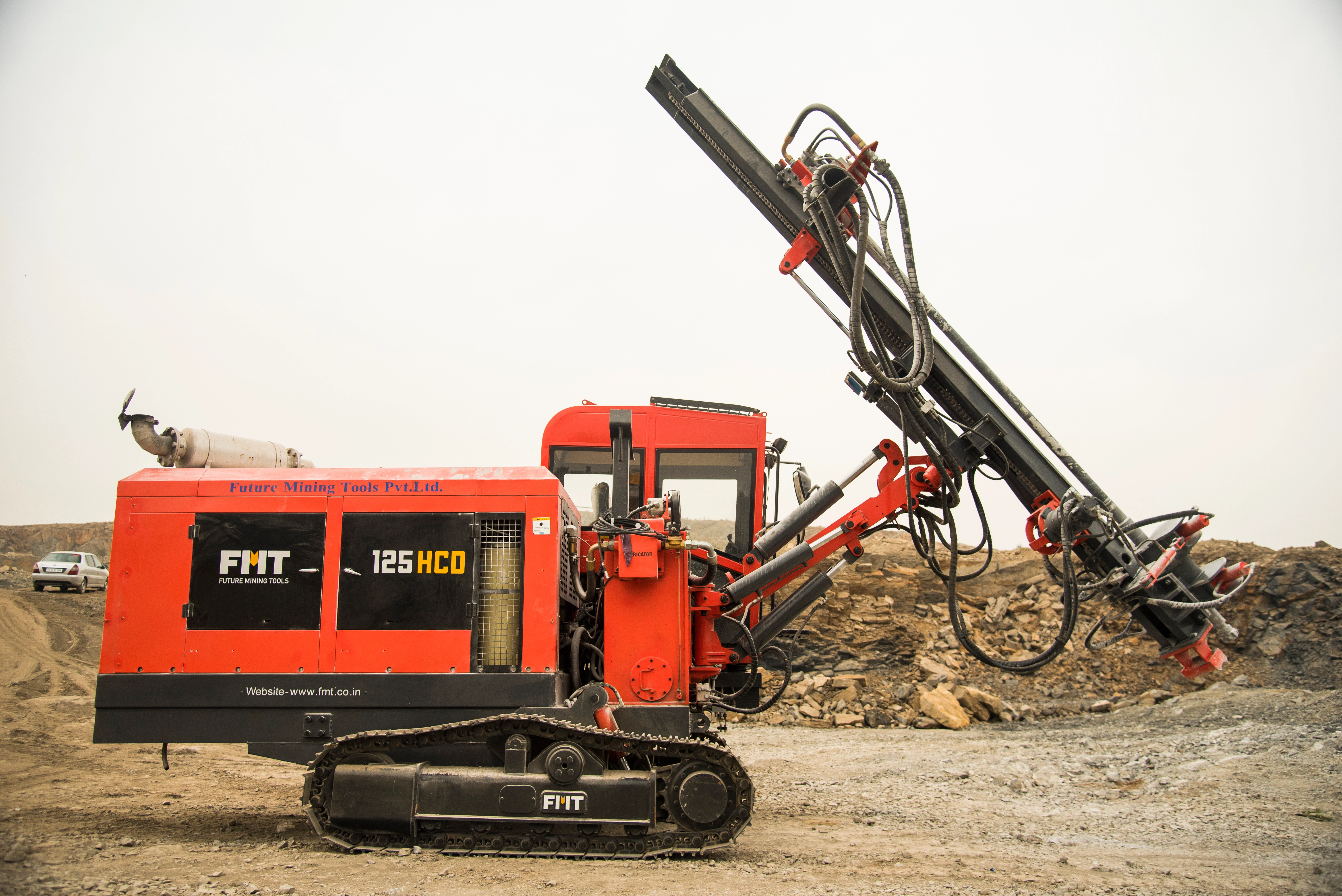

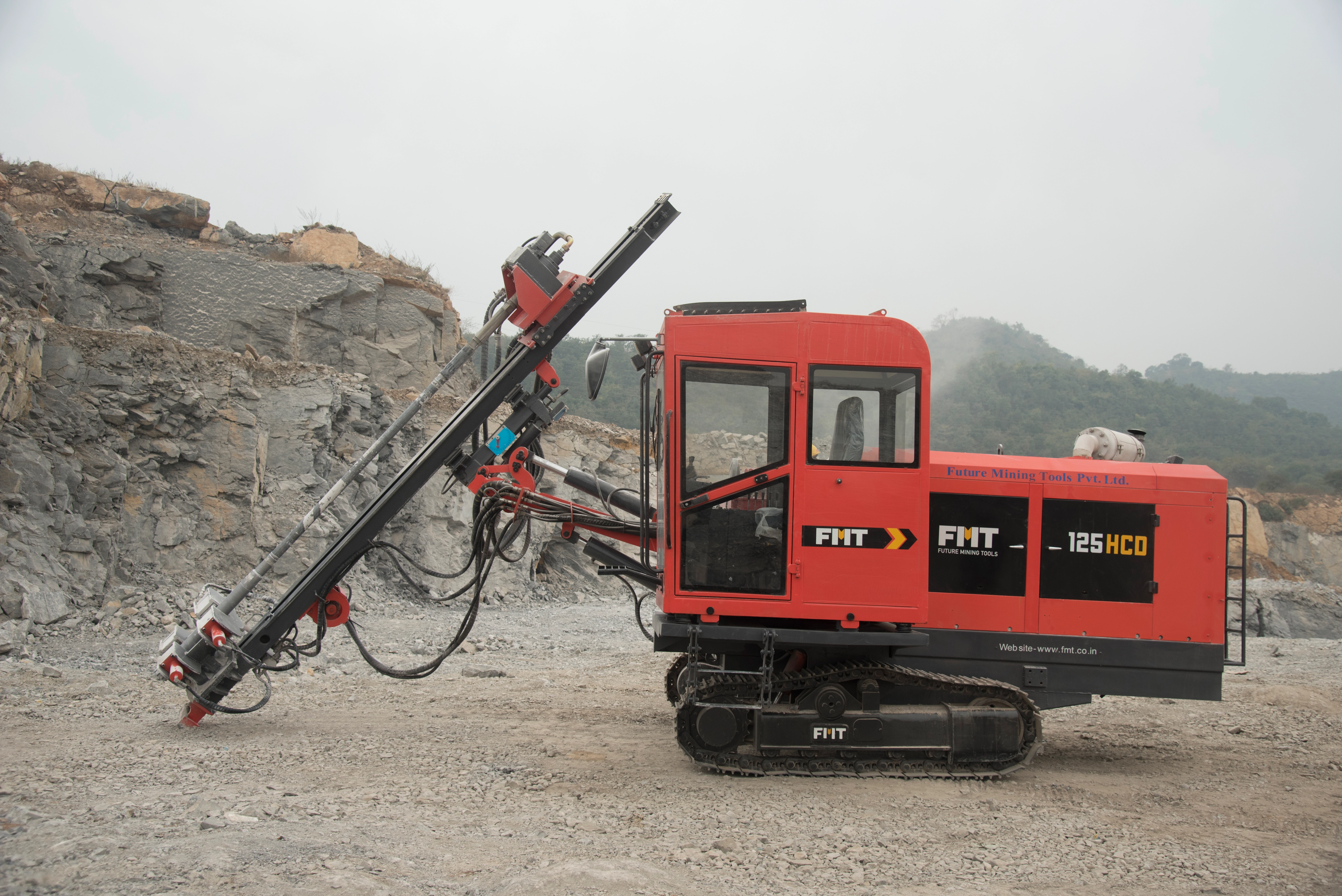

FMT 125 HCD Hydraulic Crawler Drill

The compact solution drill rig.

The FMT 125 HCD (Hydraulic Crawler Drill) is a compact solution drill rig. With its versatility, rugged construction and superior technical features, it comes with an onboard compressor and is suitable for drilling 76-115 mm diameter holes by the DTH method.

It is ideal for blast-hole production drilling in quarries, for surface mining and for construction work.

The traction motors and oscillation system provide excellent manoeuvrability in the toughest terrain.

Yes! I am Interested View specifications

Request Callback

Get Best Quote

Product specification

Technical specification of the FMT 125 HCD.

Specification	FMT 125 HCD
Hole Diameter (DTH)	76 - 115 mm
Max Hole Depth in DTH	15-18 m
Onboard Air Compressor (Atlas Copco)	12-15 bar
Cabin	Yes
Fuel Tank Capacity	210 litres
Travel Speed (Max)	0 - 2.2 km/h
Maximum Track Force	48 kN
Track Oscillation	Through two hydraulic cylinders
Gradeability	±15°
Rotary Head	Hydraulic motor & spur reduction gear box
Rotary Head Speed	0-80 rpm
Rotation Torque (Drilling)	1500 Nm
Rotation Torque (Breaking)	2100 Nm
Rotation Motor	250 cc
Feed Gear Box Force (Pull Down)	18 kN
Feed Gear Box Force (Pull Up)	13 kN

*Hole depth or drilling speed will depend upon site, operator, hammer and engine.

Not sure this drill suits your job? Ask our team.

Key features of the FMT 125 HCD

Completely hydraulic operated undercarriage track assembly with track oscillation

Onboard compressor of 12-15 bar

Joystick control for smooth tramming

Night light

High ground clearance of 550 mm

Easy repair and maintenance, with all control valves accessible from outside the cabin

Hydraulic track oscillation to move over uneven ground

Water injection for dust suppression

Emergency stop button, large rear mirror, music system, toolbox and more

AC cabin

Reverse camera with sound

DGMS compliant

Applications

Made For The Places Where
Drilling Gets Tough.

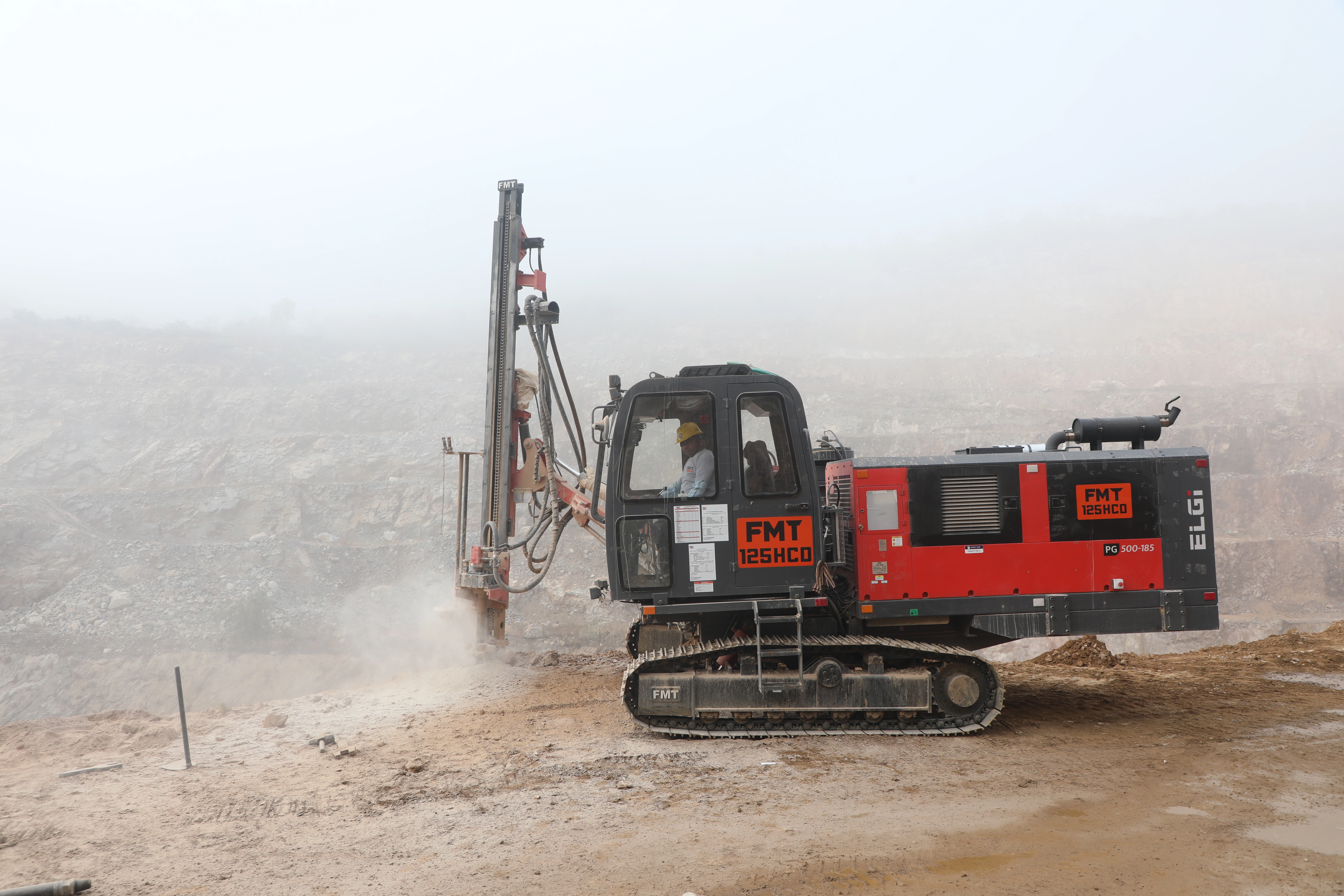

The FMT 125 HCD is built for blast-hole drilling in quarries, surface mining and construction work.

01 • QUARRIES

Quarry Blast-Hole Drilling

Ideal for blast-hole production drilling in quarries.

02 • SURFACE MINING

Surface Mining

Drills 76-115 mm DTH holes for surface mining work.

03 • CONSTRUCTION

Construction Work

Compact rig with an onboard compressor for construction sites.

More hydraulic crawler drills

Other machines in the FMT hydraulic crawler drill range.

FAQs about the FMT 125 HCD

Can't find what you're looking for? Contact us here:

sales@FutureMiningTools.com

What is the FMT 125 HCD?

A compact Hydraulic Crawler Drill with an onboard compressor, built for DTH blast-hole drilling in quarries, surface mining and construction work.

What hole sizes can it drill?

76-115 mm diameter holes by the DTH method.

How deep can it drill?

Up to 15-18 m in DTH. Depth depends on site, operator, hammer and engine.

Does it have an onboard compressor?

Yes. It has an onboard Atlas Copco air compressor of 12-15 bar.

Is it DGMS compliant?

Yes, the FMT 125 HCD is DGMS compliant.

What is the fuel tank capacity?

210 litres.

How do I get a quote?

Click Send inquiry or email sales@FutureMiningTools.com with your application and hole size.
