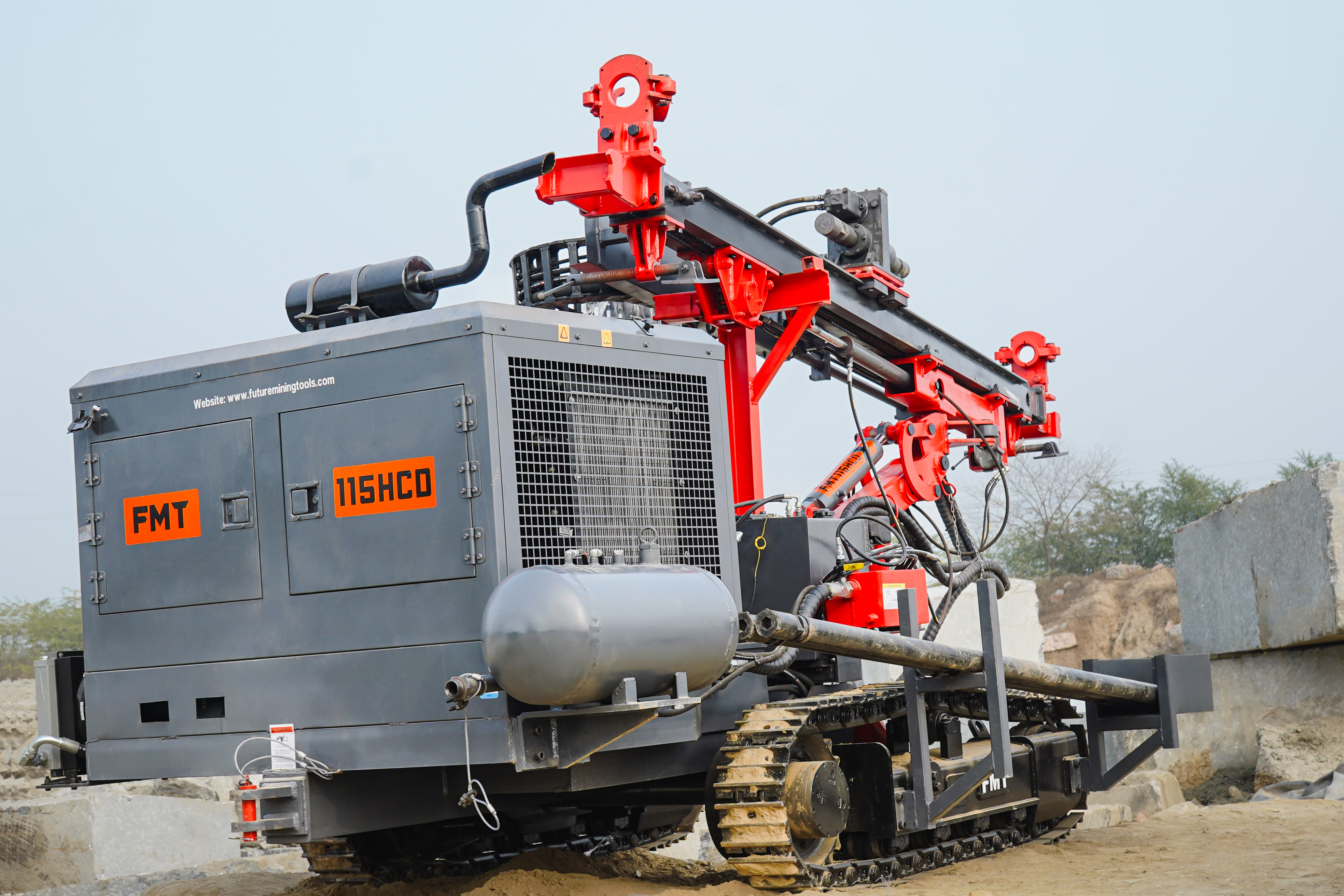

FMT 115HCD Hydraulic Crawler Drill

A pure hydraulic crawler drill for blast-hole production drilling in quarries, surface mining and anchoring.

FMT 115HCD Hydraulic Crawler Drill

Compact, rugged and fuel efficient.

The FMT 115HCD (Hydraulic Crawler Drill) is a compact high power DTH drill. With its versatility, rugged construction and superior technical features, this drill is highly reliable and more efficient.

The traction motors and oscillation system provide excellent manoeuvrability in the toughest terrain, and the drill gives you clear, visible benefits in fuel consumption.

It is ideal for blast-hole production drilling in quarries, or for surface mining and anchoring. An electric motor is optional.

Yes! I am Intrested View specifications
Request Callback
FMT 115HCD Hydraulic Crawler Drill
Get Best Quote

Product specification

Technical specification of the FMT 115HCD in engine-only and engine + electric versions.

SpecificationUnitFMT 115 HCD
Engine Only		FMT 115 HCD+E
Engine + Electric
TypeTypeDTHDTH
DTH Drilling Sizemm76-13076-130
Anchoring Sizemm76-20076-200
EngineHP / RPM80 hp @ 2100 rpm80 hp @ 2100 rpm
Electric MotorkWNA22 kW
Machine Speedkm/hr0-3.50-3.5
PumpTypeCast ironCast iron
Feed Chaininch1 1/4"1 1/4"
Rotation TorquekN20102010
Rotation Speedmax rpm0-800-80
Feed ForcekN1212
Feed TypeTypeMotorMotor
Rod Lengthm (ft)3 (10)3 (10)
Ground Clearancemm255255
Track OscillationTypeCylinderCylinder
Rod StandYesYes
Wet Type Dust SuppressionYesYes
Dust CollectorOptionalOptional
Weightkg55006000
Suitable CompressorCFM / bar450-600 cfm @ 10-17 bar450-600 cfm @ 10-17 bar

*Machine performance can differ from site to site, soil, operator and air compressor used.

Not sure which version suits your job? Ask our team.

Key features of the FMT 115HCD

Pure hydraulic crawler drill

Auto parking brakes and de-clutching system

More ground clearance for uneven ground, and easy to transport

Hydraulic feed, rotation and traction add to the drilling rate

Compact, reliable power pack, suitable for high pressure DHD

Emergency stop button; optional water injection / dust collector

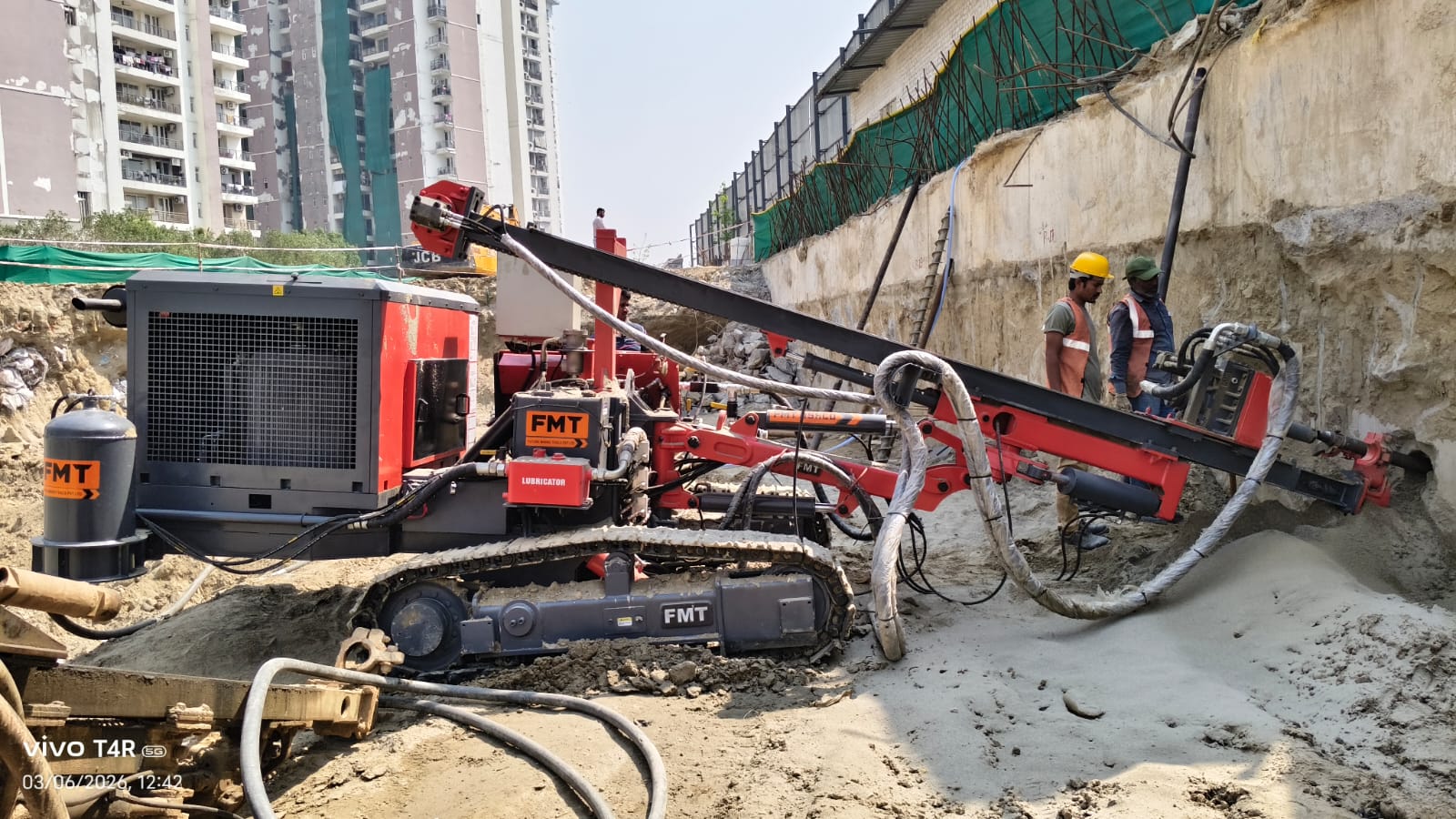

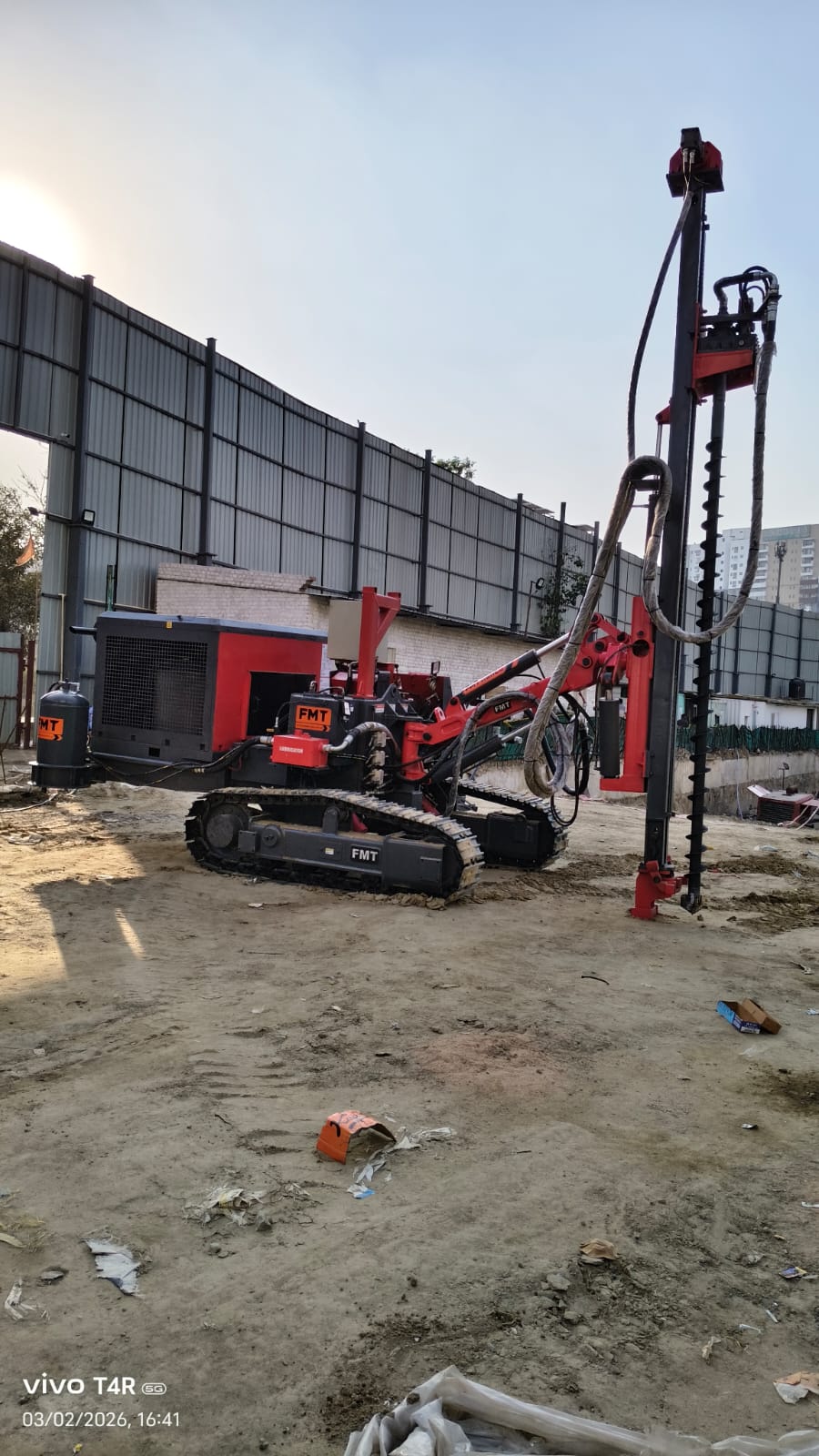

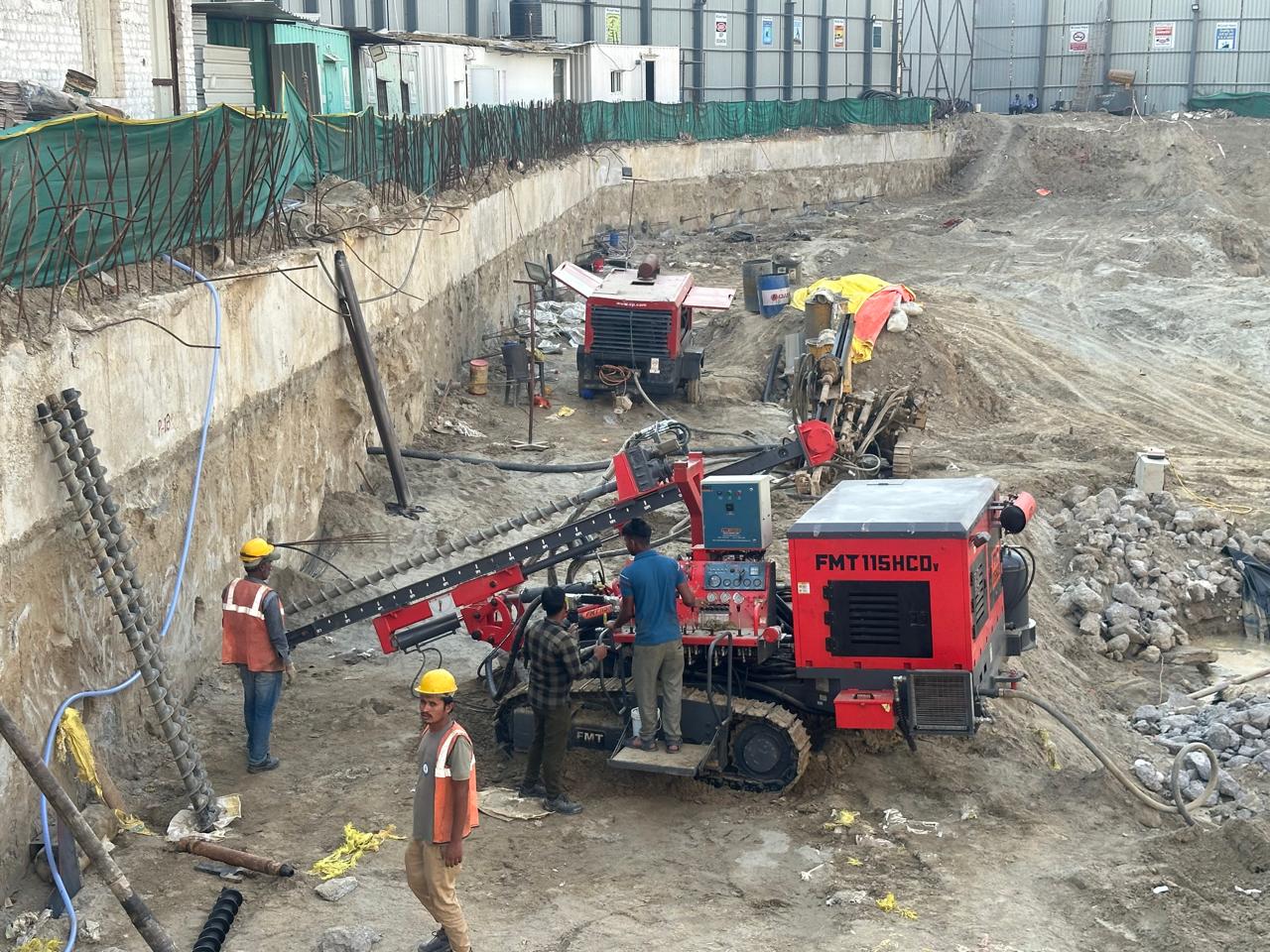

FMT 115HCD Hydraulic Crawler Drill at work

Applications

Made For The Places Where
Drilling Gets Tough.

The FMT 115HCD is built for blast-hole production drilling in quarries, surface mining and anchoring.

Quarry Blast-Hole Drilling
01 • QUARRIES

Quarry Blast-Hole Drilling

Ideal for blast-hole production drilling in quarries.

Surface Mining
02 • SURFACE MINING

Surface Mining

Hydraulic crawler drilling for surface mining.

Anchoring
03 • ANCHORING

Anchoring

Anchoring sizes from 76 to 200 mm.

More hydraulic crawler drills

Other machines in the FMT hydraulic crawler drill range.

FMT 115 VH

FMT 115 VH

Hole Matching Machine
FMT 115 PRO

FMT 115 PRO

Hydraulic Crawler Drill
FMT 115 Flexi

FMT 115 Flexi

Hydraulic Crawler Drill
FMT 125HCD

FMT 125HCD

Hydraulic Crawler Drill

FAQs about the FMT 115HCD Hydraulic Crawler Drill

Can't find what you're looking for? Contact us here:

sales@FutureMiningTools.com
What is the FMT 115HCD?

The FMT 115HCD is a pure hydraulic crawler drill (compact high power DTH drill) for quarries, surface mining and anchoring.

What hole sizes can it drill?

DTH drilling size is 76-130 mm and anchoring size is 76-200 mm.

Is an electric version available?

Yes. The FMT 115 HCD+E adds a 22 kW electric motor to the 80 hp engine.

What is the machine weight?

5500 kg for the engine-only version and 6000 kg for the engine + electric version.

What compressor does it need?

A 450-600 cfm compressor at 10-17 bar.

How do I get a quote?

Click Send inquiry or email sales@FutureMiningTools.com with your application and hole size.
