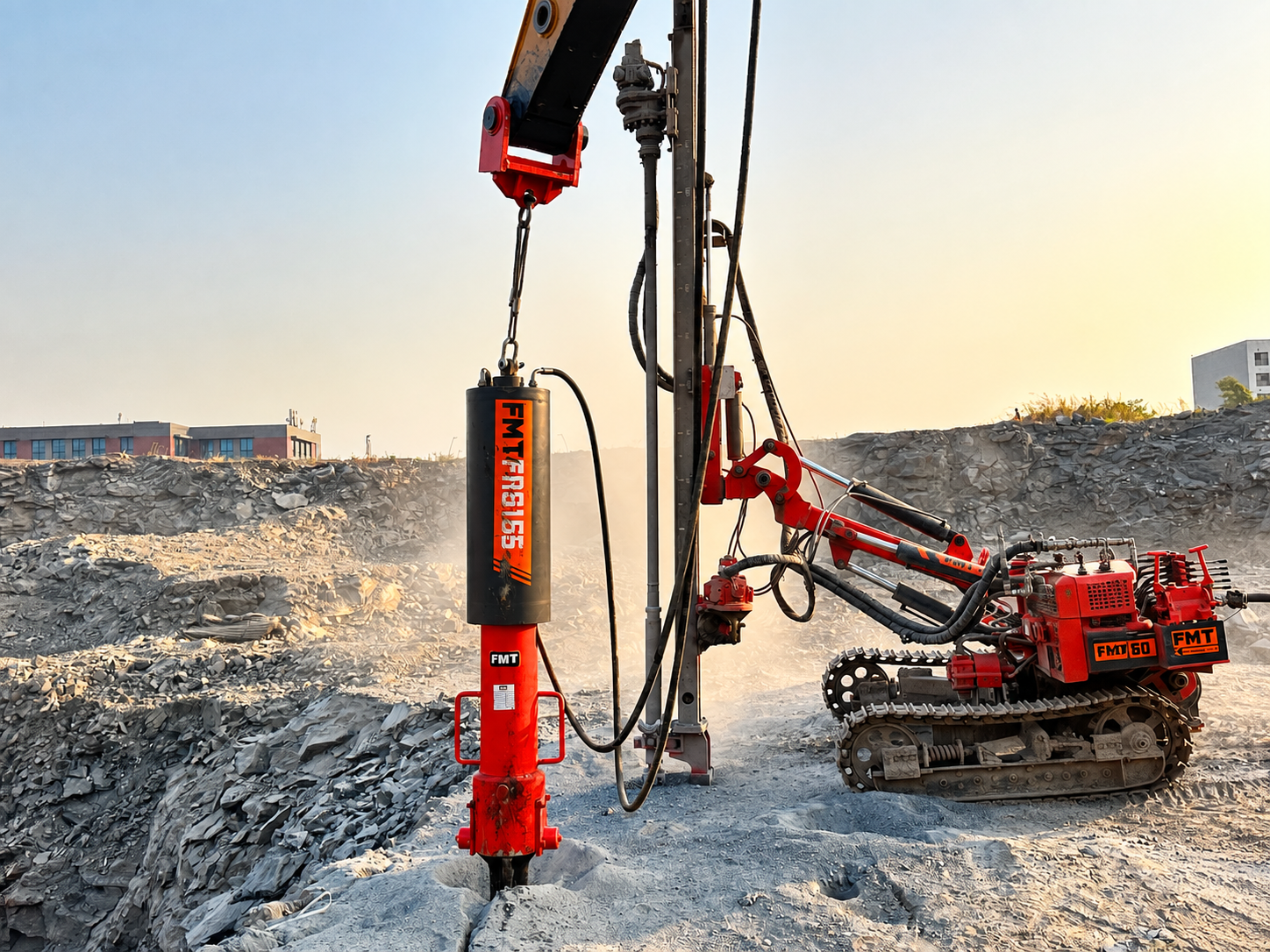

FMT hydraulic rock splitters

Safe, accurate and productive rock splitting.

FMT Rock Splitters use high pressure hydraulic oil as the energy source. The oblique cutting principle is applied to make the splitting force reach thousands of tons.

Rock splitting is done without any explosives, pollution or noise, reducing the risk. The direction of splitting and the size of the split can be determined in advance, offering more accuracy than explosives.

The range includes Small Rock Splitters, an Excavator Rock Splitter with a 150 mm chisel, and the All-in-One Rock Splitter FRS180, which integrates the functions of the drilling rig and the splitting machine.

Send inquiry View specifications

Our rock splitter range

Choose a type to see its specification and send an inquiry.

Product specification

Select a splitter type to see its technical specification.

Model	Wedge Lengthmm	Drilling Diamm	Drilling Depthmm	Rated PressureMPa	Splitting Forceton	PowerkW	Weightkg
SRS250	250	38	500	60-80	300	4	35
SRS350	350	42	700	60-80	400	4	39
SRS450	450	46	1000	60-80	600	4	42

Specification	Unit	Value
Chisel Size	mm	150
Suitable Base Machine	ton	20-40

Specification	Unit	Value
Size	ton	22-30
Drilling Dia	mm	115
Drilling Depth	mm (mtr)	1500 (1.5)
Splitting Depth	mm	1000
Splitting Thickness	mm	1200
Impact Pressure	bar	175
Impact Power	kW	18
Impact Flow	lpm	80-100
Impact Energy	joule	300
Rotary Torque	Nm	830
Rotary Speed	rpm	250
Working Flow	lpm	250
Cylinder Diameter	mm	320
Air Compressor		Built-in
Air Compressor Working		Hydraulic
Weight	kg	3800

Not sure which splitter suits your job? Ask our team.

Advantages of hydraulic rock splitter

Safety: no explosives, pollution or noise

High productivity: large wedge diameter and very high splitting force

Durability: minimal parts and precise finishing

Accuracy: direction and size of split decided in advance

No vibration and silent splitting

Good stability: hydraulic motor rotating power, easy to move

Easy to operate and convenient to maintain

FMT rock splitters at work

Applications

Made For The Places Where
Blasting Is Not An Option.

FMT rock splitters suit earth and stone works that cannot be blasted with explosives, such as excavation of broken stones for urban foundations.

01 • URBAN WORKS

Urban Foundation Excavation

Excavation of broken stones for urban foundation work.

02 • NO-BLAST ZONES

Where Explosives Cannot Be Used

Earth and stone works that cannot be blasted with explosives.

03 • HARD ROCK

Hard Rock Splitting

Splitting hard rock with no explosives, pollution or noise.

FAQs about hydraulic rock splitters

Can't find what you're looking for? Contact us here:

sales@FutureMiningTools.com

How does the FMT Rock Splitter work?

FMT Rock Splitters use high pressure hydraulic oil as the energy source. The oblique cutting principle is applied to make the splitting force reach thousands of tons.

Do I need explosives to break hard rock?

No. Rock splitting is done without any explosives, pollution or noise, which reduces the risk. It suits earth and stone works that cannot be blasted with explosives.

Which models are available?

Small Rock Splitters (SRS250, SRS350, SRS450), the Excavator Rock Splitter with a 150 mm chisel, and the All-in-One Rock Splitter FRS180 which combines the drilling rig and the splitting machine.

What is the All-in-One Rock Splitter FRS180?

An integrated rock drilling and splitting machine that concentrates on drilling and splitting operations. It is especially suitable for earth and stone works that cannot be blasted, such as excavation of broken stones for urban foundations.

Can I control the direction of the split?

Yes. The direction of splitting and the size of the split can be determined in advance, which offers more accuracy than explosives.
