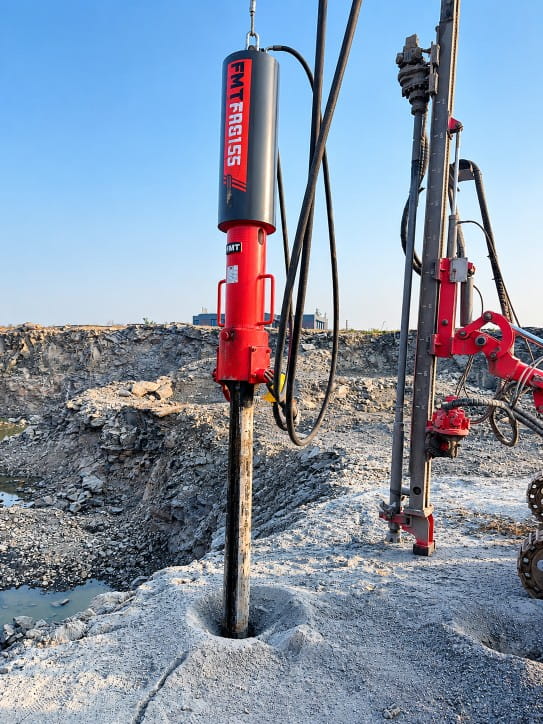

FMT Rock Splitter (150 mm Chisel)

Hydraulic rock splitting with high splitting force, controlled operation and precision for demanding rock excavation applications.

FMT Rock Splitter

Powerful and precise rock splitting with a 150 mm wedge diameter.

The FMT Rock Splitter uses high-pressure hydraulic oil as its energy source. It applies the oblique cutting principle to generate a splitting force of thousands of tons.

Designed for heavy-duty rock-splitting applications, the system combines a large wedge diameter with high splitting force to support productive operations.

The direction of splitting and the size of the split can be determined in advance, providing controlled and accurate rock-breaking without explosives.

Yes! I am interested View specifications

Request Callback

Get Best Quote

Product Specifications

Technical specifications for the FMT Rock Splitter, Model FRS 155.

MODEL	UNIT	FRS 155
Excavator Size	Ton	20-30
Drilling Dia	mm	155
Drilling Depth	mm/(mtr)	2500 (2.5)
Chisel Length	mm	1500
Wedge Diameter	mm	150
Splitting Hole Distance	mm	1000-1200
Oil Flow	Lpm	180
Rated Pressure	MPa	24-70
Splitting Force	Ton	5000
Split Block Length	mm	1200
Weight	kg	1500

Need help confirming the right specification for your project? Ask our team.

Advantages of the FMT Rock Splitter

Safety: rock splitting without explosives, reducing associated risk, noise and pollution

Productivity: large wedge diameter and high splitting force

Accuracy: splitting direction and size can be determined in advance

Durability: minimal components and precise finishing support reliable service

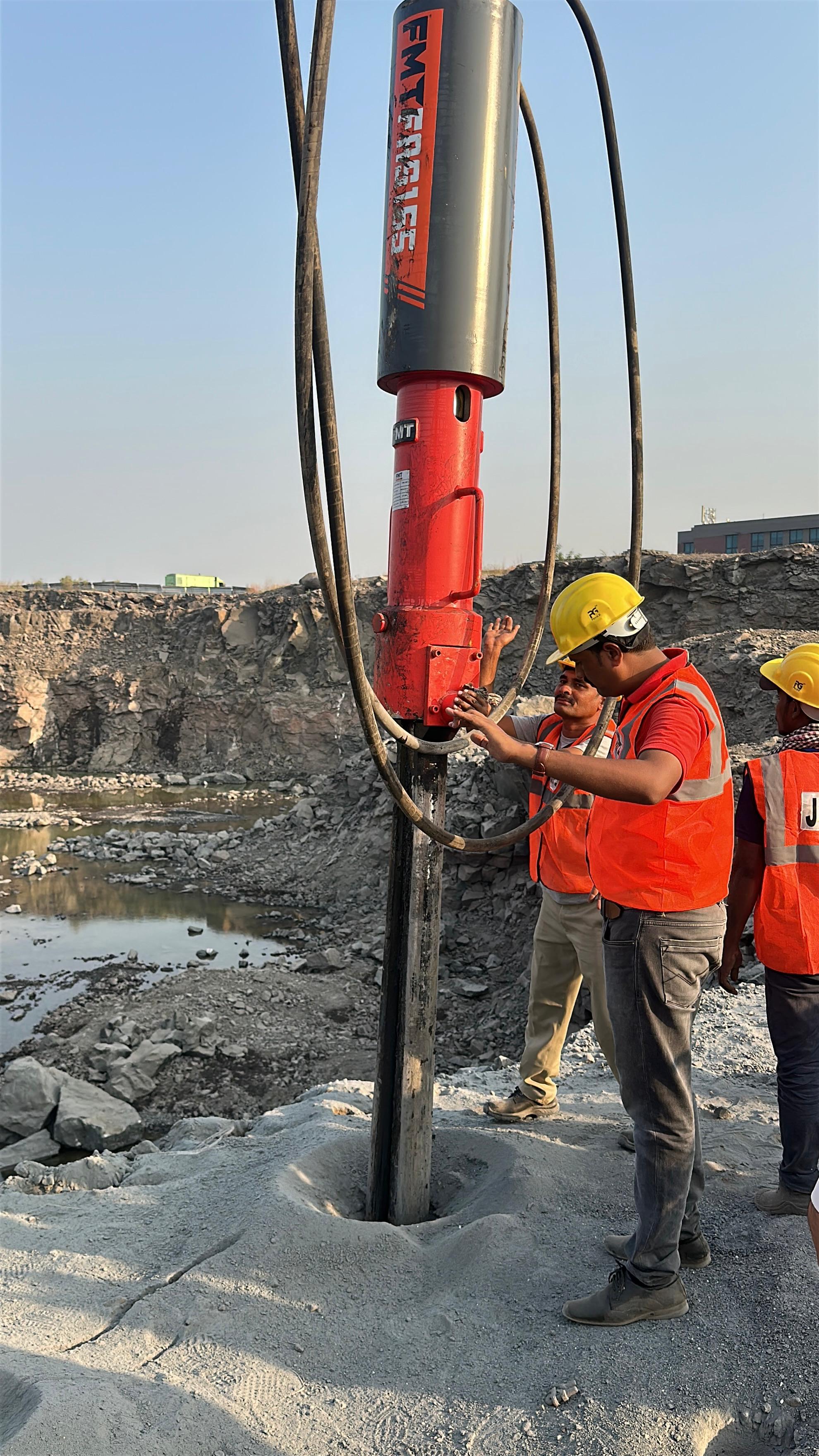

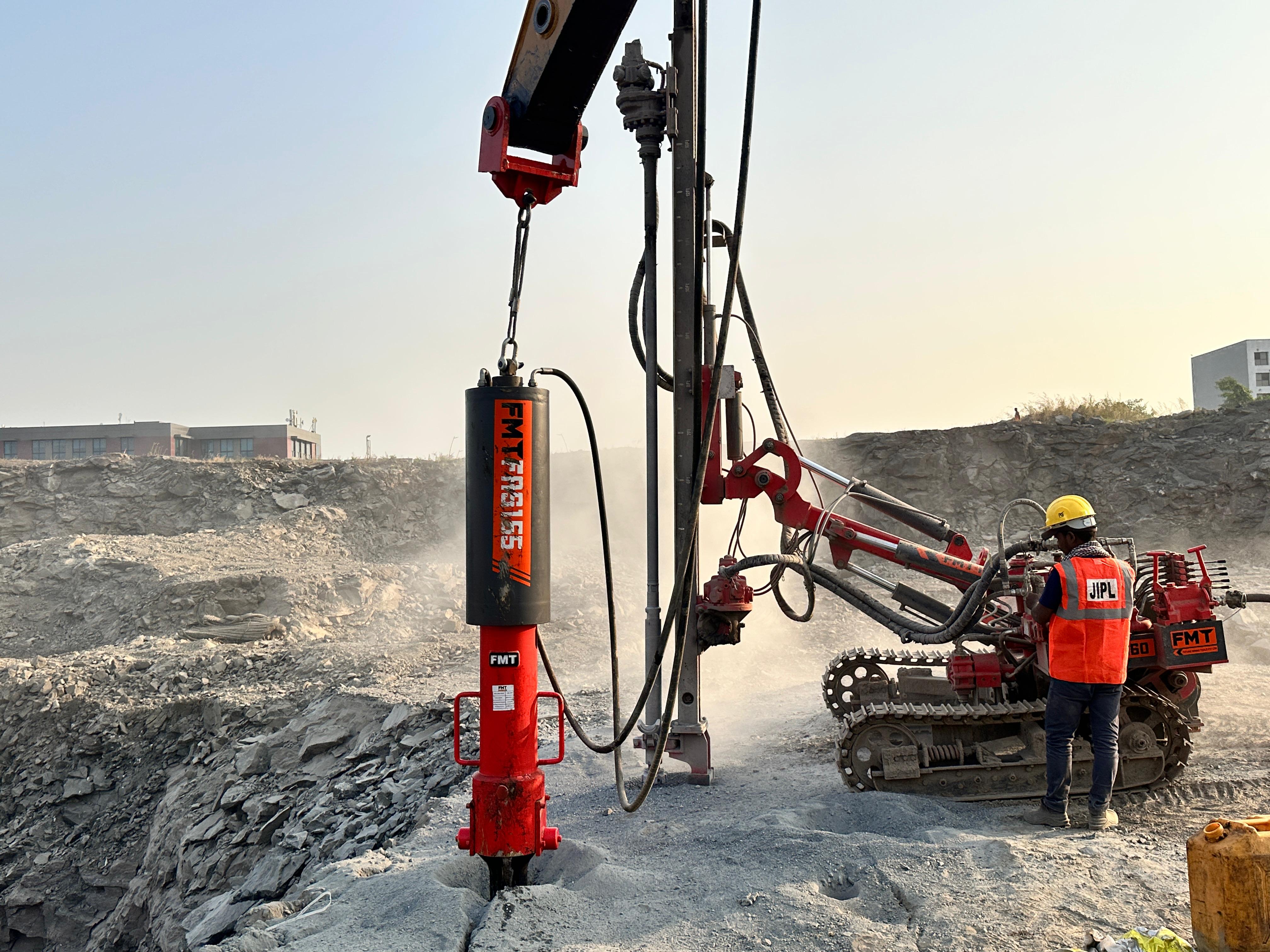

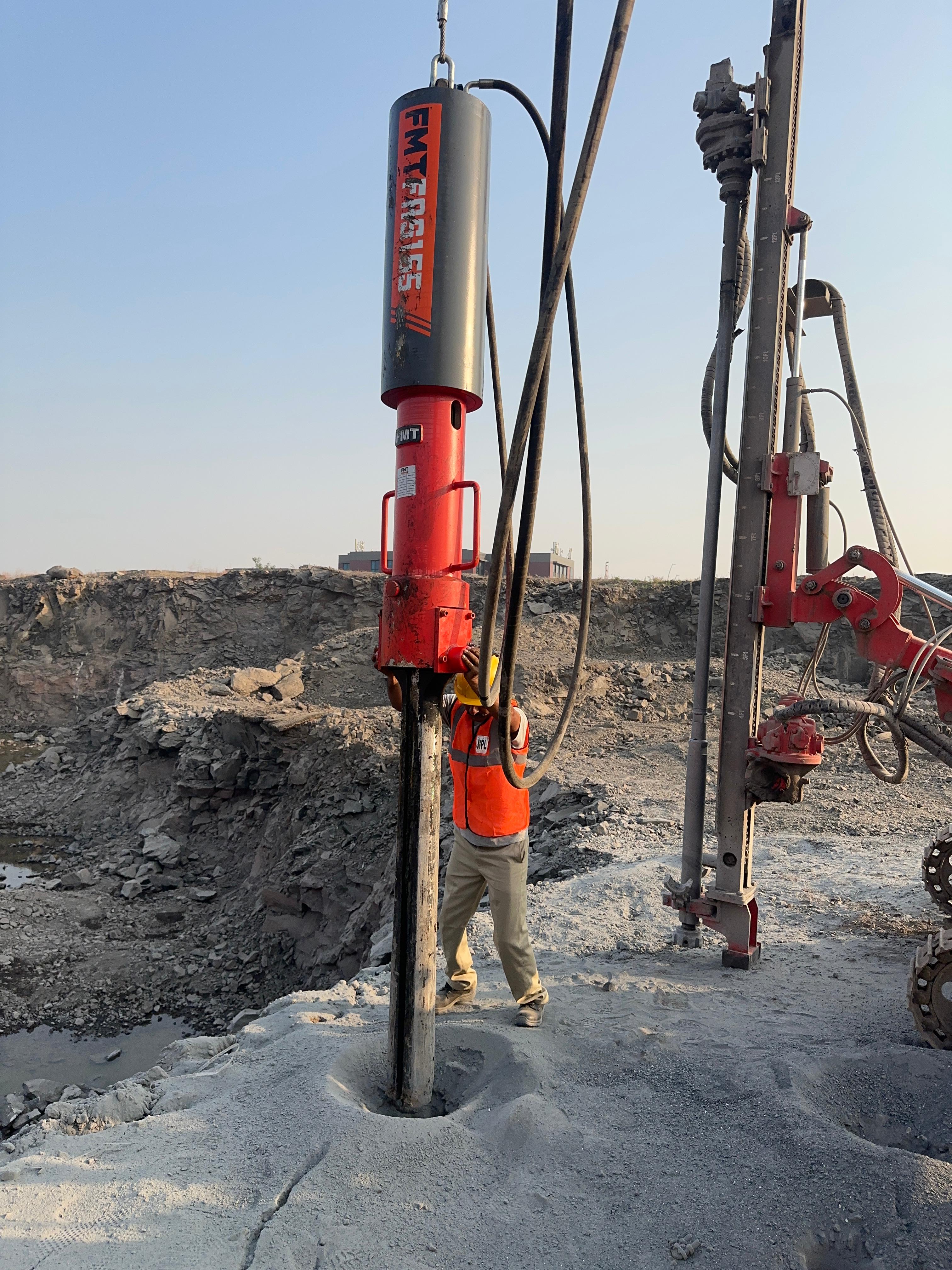

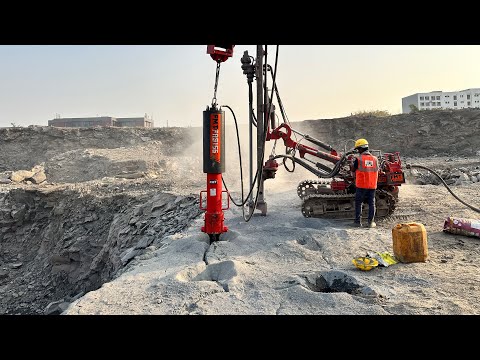

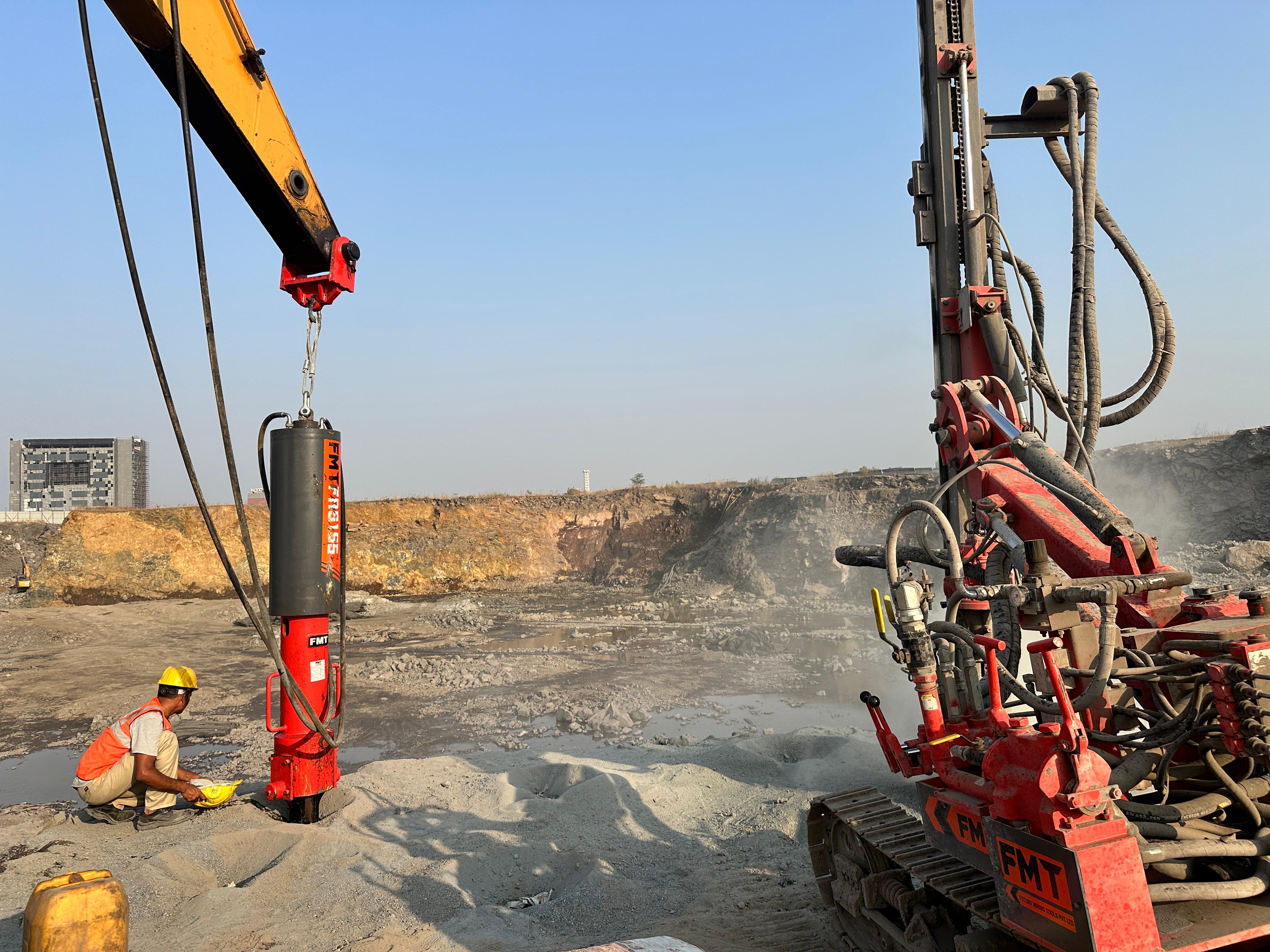

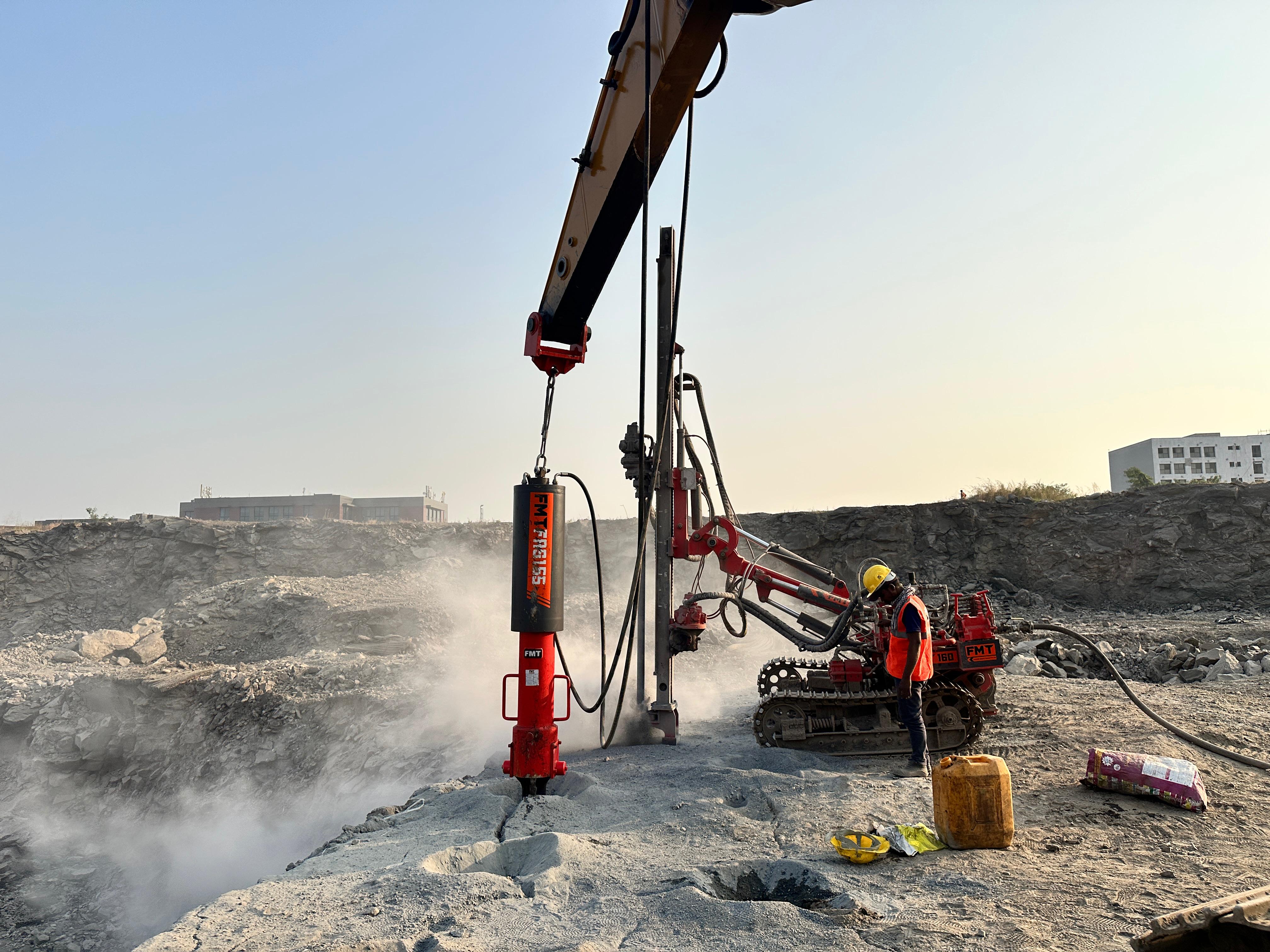

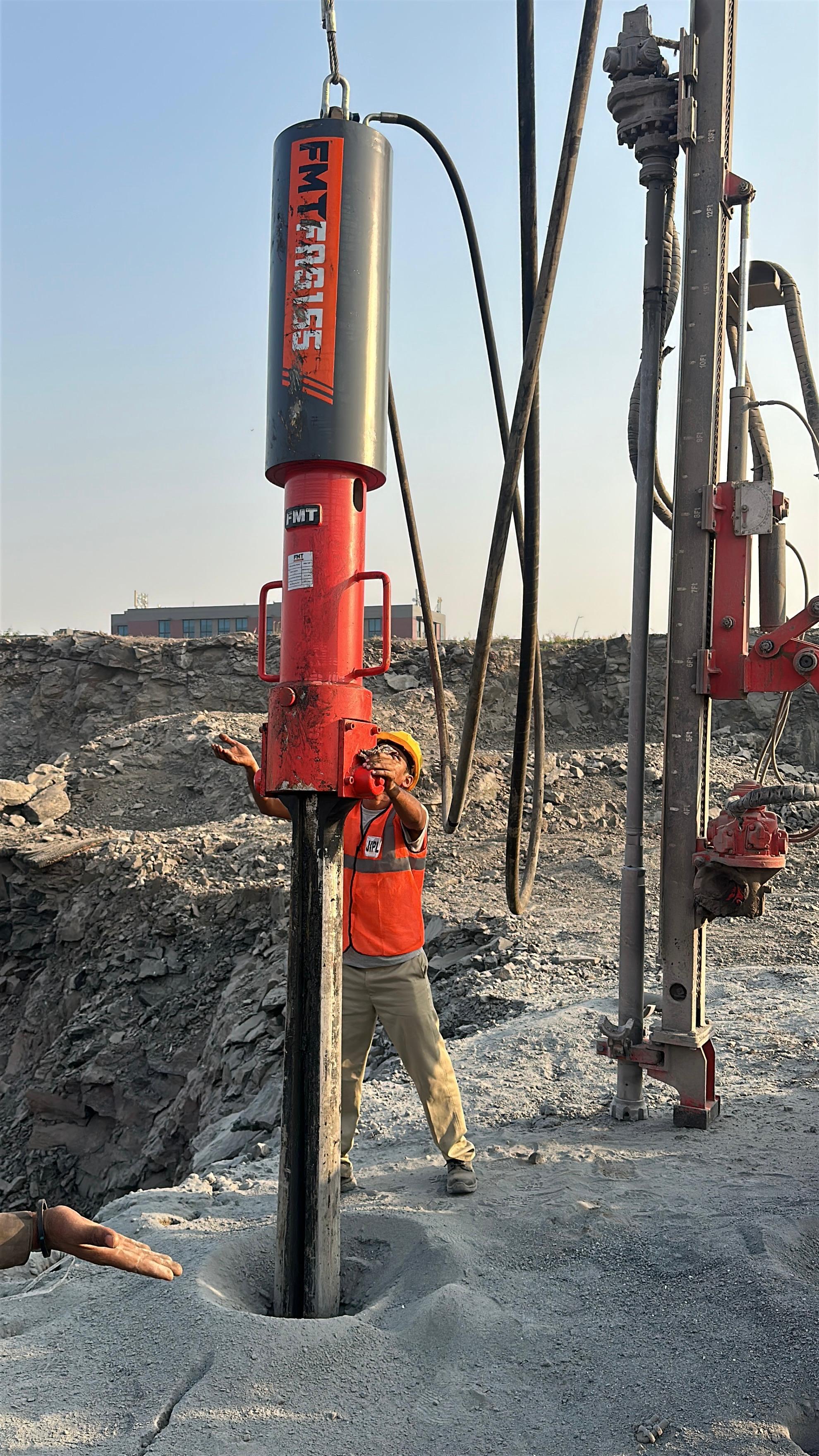

FMT Rock Splitter (150 mm Chisel) at Work

Explore product images and available videos.

Applications

Made for projects where
controlled splitting matters.

The FMT Rock Splitter is suited to rock excavation, foundation work and other applications where controlled splitting is preferred over explosive blasting.

01 • URBAN WORKS

Urban Foundation Excavation

For controlled excavation of rock and broken stone during foundation work.

02 • NO-BLAST ZONES

Where Explosives Cannot Be Used

For projects where explosive blasting is unsuitable or restricted.

03 • HARD ROCK

Hard Rock Splitting

Splits hard rock without using explosives, helping reduce associated noise and pollution.

More rock splitters

Other machines in the FMT rock splitter range.

FMT Mini Rock Splitter

SRS250 / SRS350 / SRS450

FMT All-in-One Rock Splitter FRS180

Drilling + splitting

FAQs about the FMT Rock Splitter (150 mm Chisel)

Need more information? Contact our team:

sales@FutureMiningTools.com

What is the FMT Rock Splitter?

The FMT Rock Splitter uses high-pressure hydraulic oil and the oblique cutting principle to split rock without explosives.

What is the model listed on this page?

The technical specification provided is for model FRS 155.

What excavator size is listed?

The supplied specification lists an excavator size of 20-30 tons.

What is the drilling diameter?

The listed drilling diameter is 155 mm.

Can the splitting direction be controlled?

Yes. The direction of splitting and the size of the split can be determined in advance.

How can I request a quote?

Use the inquiry or quote buttons on this page to contact the team about your application and requirements.
