Core drilling built for exploration

FMT Core Drill in three models, with optional Auto SPT.

The FMT Core Drill is designed for high productivity in exploration drilling. It is available in BQ, NQ, HQ and PQ sizes, with an optional Auto SPT function.

A high-torque hydraulic rotary head, precision variable speed control and a heavy-duty hydraulic feed system with a long feed stroke help you drill with control and recover core efficiently.

Choose from the FMT CD 400, FMT CD 800 and FMT CD 1000 to match your core size and depth requirement.

Yes! I am interested View specifications

Request Callback

Get Best Quote

Drilling options

BQ / NQ / HQ / PQ options

Auto SPT (optional)

Depth from 400 to 800 m

Key features

Available in BQ / NQ / HQ / PQ

High-torque hydraulic rotary head

Precision variable speed control

Heavy-duty hydraulic feed system

3 metre long feed stroke

High feed and pullback force

Smooth and controlled carriage movement

Independent rotation and feed control

Efficient core recovery

Heavy-duty mast construction

Robust rod clamping and breakout system

High-performance mud circulation system

Easy access for maintenance and servicing

Designed for high productivity in exploration drilling

Technical specifications

FMT CD 400, FMT CD 800 and FMT CD 1000.

Parameter	FMT CD 400	FMT CD 800	FMT CD 1000
Drilling capacity - BQ (m)	600	1000	1200
Drilling capacity - NQ (m)	400	800	1000
Drilling capacity - HQ (m)	100	650	800
Drilling capacity - PQ (m)	-	250	400
Engine power (HP)	110	130-150	155-170
Engine cylinders	4 cylinder	6 cylinder	6 cylinder
Engine make	Ashok Leyland or Kirloskar	Kirloskar / Cummins	Ashok Leyland / Cummins
Rotation gear box type	Single	Two speed	Two speed
Maximum torque (N.m)	1000	2500	3000
Maximum speed (rpm)	1000	1100	1100
Feed stroke (m)	3	3.2	3.2
Lifting force (ton)	20	25	35
Wire rope length (m)	600	1000	1400
Wire rope speed (m/min)	110	110	110
Wire rope size (mm)	6	6	6
Mast, extended (optional) (m)	6.1	6.1	6.1
Drilling angle	45-90°	0-90°	0-90°
Clamping cylinder	Yes	Yes	Yes
Track type	Metal	Metal	Metal
Climbing angle	30°	30°	30°
Travel speed (km/h)	2.5	3	3
Mud pump	BW 100	BW 160	BW 180
Approx. weight (ton)	6.1	7.5	8.5

Not sure which model suits your project? Ask our team.

Optional functions available

Auto SPT function (optional)

Auto SPT function with digital count (optional)

Extended mast to remove 6 m rod line (optional)

Rod catcher with 4 cylinders

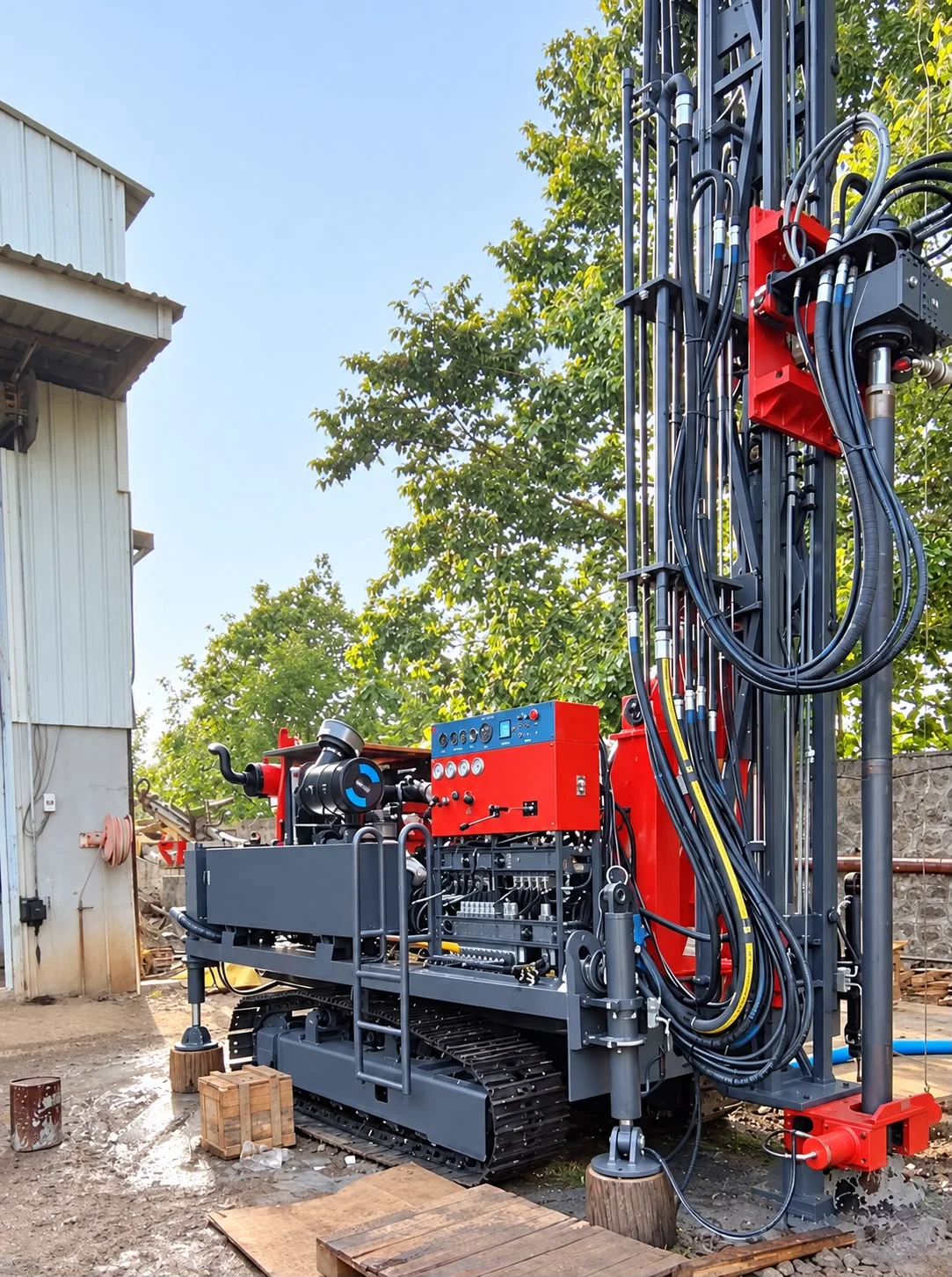

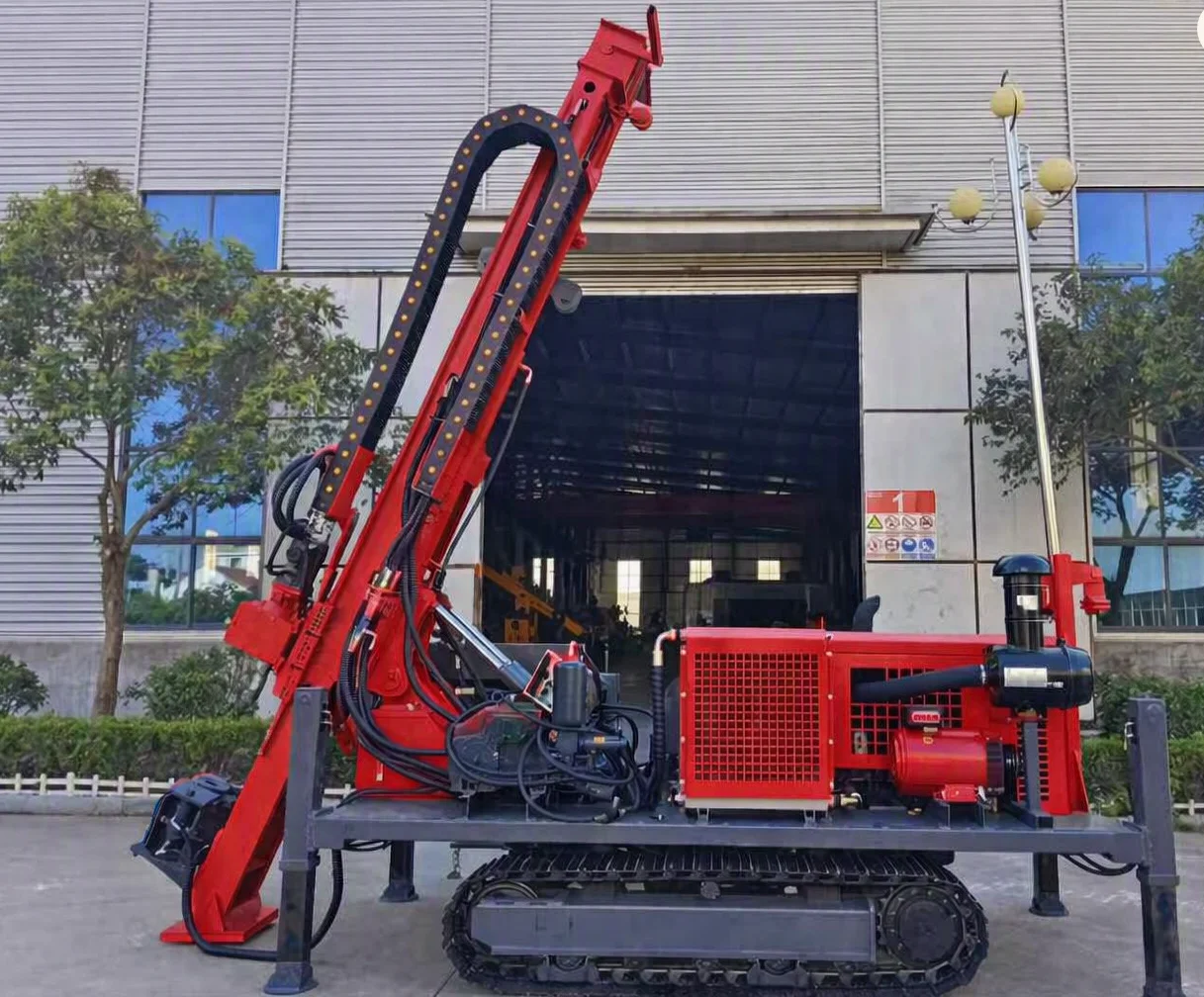

FMT core drill at work

FAQs about FMT core drill

Can't find what you're looking for? Contact us here:

sales@FutureMiningTools.com

What is the FMT Core Drill?

FMT Core Drill is a hydraulic core drilling rig built for exploration drilling. It is available in three models: FMT CD 400, FMT CD 800 and FMT CD 1000.

Which core sizes are available?

The core drill is available in BQ, NQ, HQ and PQ sizes. PQ is available on the FMT CD 800 and FMT CD 1000. See the specification table for the capacity of each model.

What optional functions can I add?

You can add an Auto SPT function, Auto SPT with digital count, and an extended mast to remove a 6 m rod line. A rod catcher with 4 cylinders is also available.

What is the feed stroke?

The FMT CD 400 has a 3 metre feed stroke. The FMT CD 800 and FMT CD 1000 have a 3.2 metre feed stroke.

Which model should I choose for my depth?

It depends on the core size and the depth you need to drill. Check the capacity table, or share your requirement with our team and we will help you pick the right model.

Which engine and mud pump are used?

The FMT CD 400 runs on a 110 HP engine with a BW 100 mud pump. The FMT CD 800 uses a 130-150 HP engine with a BW 160 pump, and the FMT CD 1000 uses a 155-170 HP engine with a BW 180 pump.
